TCP ports used by AlphaPro

From Zenitel Wiki

Revision as of 08:20, 8 July 2022 by Asle (talk | contribs)

Depending on server type (AlphaCom XE or ICX-AlphaCom) and the AlphaPro version, AlphaPro is using different TCP ports when communicating with the server.

If you get an error message in AlphaPro when trying to communicate with the server, check that:

  • Node Type is correct in AlphaPro
  • That the relevant TCP ports are enabled in the Filters Settings in the web interface of the server.

ICX-AlphaCom server

When using AlphaPro to configure an ICX-AlphaCom system, make sure that Node Type is set to "ICX" in Exchange & System > System:

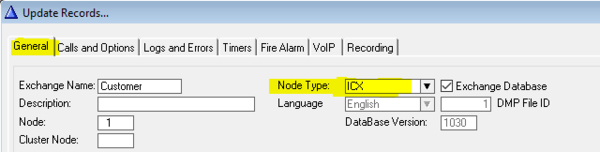

AlphaPro Type ICX.PNG



TCP Ports used (must be enabled in Filters in web interface:

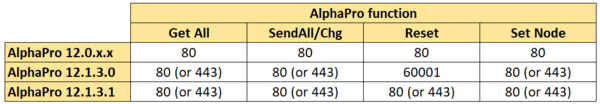

AlphaPro TCP ICX.PNG



AlphaCom server

When using AlphaPro to configure an AlphaCom XE system, make sure that Node Type is set to "AlphaCom XE" in Exchange & System > System:

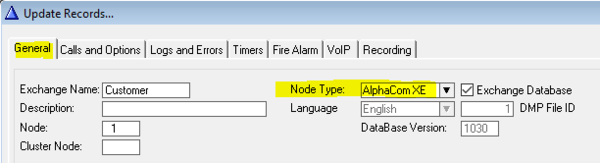

AlphaPro Type XE.PNG



TCP Ports used:

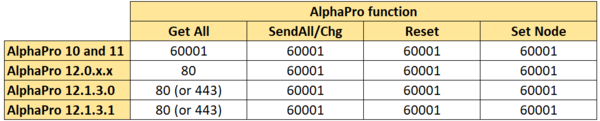

AlphaPro TCP XE.PNG
