1-3c. IP Stations – SoftClient (solution)

From Zenitel Wiki

System configuration



Install and configure the SoftClient

  • Download the file SoftClientSetup.msi from e.g. Wiki download page or from Partnernet, and install it on the PC
  • If not already done, change the IP address of the PC to 10.1.10.90, and subnet mask 255.255.0.0
  • Start the SoftClient, and select File -> Preferences, and set these parameters:

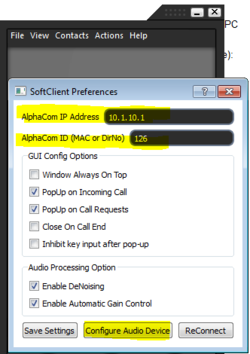

SoftClient: File -> Preferences window


  • Save Settings
  • Select Configure Audio Device to adjust speaker and microphone levels

Configure the AlphaCom XE

  • In AlphaPro go to Users & Stations, and select physical number 40; 140 Station 40
  • Use the section on the right and change the configuration as follows:

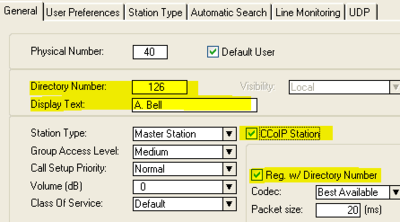

AlphaPro: Users & Stations window


  • Send the changes to the AlphaCom XE


Troubleshooting

  • If the SoftClient does not register, check the following:
    • In AlphaWeb, System Configuration -> Filters, verify that port for IP Stations and VoIP Audio is enabled
    • In AlphaWeb, System Configuration -> Licenses, verify that there are licenses installed for the SoftClient
