Advanced Configuration Mode (SIP)

From Zenitel Wiki

SIP Icon 300px.png

When devices are used in a SIP System, some additional settings are available when entering the Advanced Configuration Mode.
This applies to for example:

  • Advanced Audio Settings
  • SNMP
  • 802.1x Authentication
  • Script configuration
  • Firewall
  • Advanced Call Settings

Firmware version 7 and later

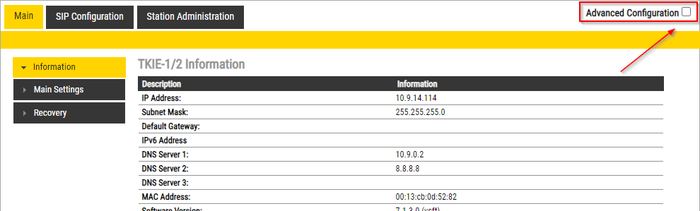

From version 7.1 the Advanced Mode is easily accessible in the top right corner:

Advanced Configuration Mode



Firmware version 5.x and 6.x

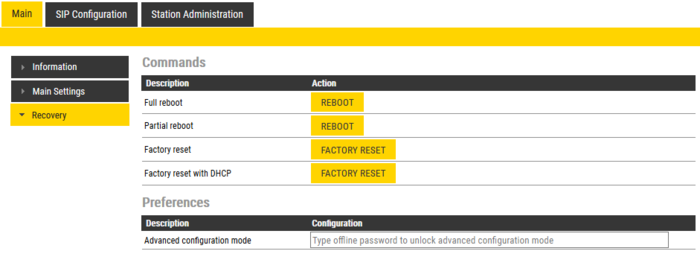

To enter the Advanced Configuration Mode go to Main -> Recovery -> Preferences

Advanced Configuration Mode

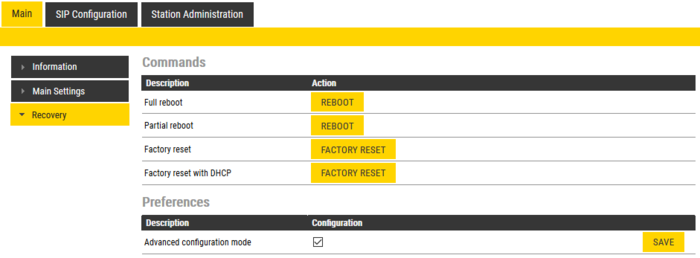

Type the offline password and tick off the Configuration check box and click Save.

Advanced Configuration Mode


Offline Password: 1851

To revert back to Basic Configuration mode, uncheck the same flag.
