Door opening of Ring Master stations from AlphaCom

Door opening of Ring Master stations from AlphaCom is configured by using Event During Connection and DP message DTMF_CONN

Example

Node 1 AlphaCom

• Station 101 is a Control Room Station
• Station 104 is a Door Station

Node 3 Ring Master

• Door Station Directory number "4567"

Event During Connection configured as directory number "6" (Door opening)

The Event Handler is configured with 2 events:

---

Event 1: This event will send DTMF tone 5 if digit "6" is pressed during conversation to "4567".

Action commands:

$DTMF_CONN L%1.dir U5

---

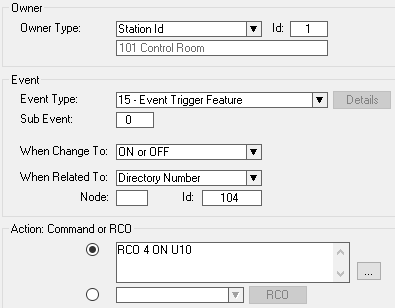

Event 2:The second event will toggle the RCO pin 4 for 1 second if digit "6" is pressed during conversation to door station number 104.

Action commands:

RCO 4 ON U10

Related Article: RingMaster/AlphaCom Integration - DTMF
