Grandstream HandyTone-488

From Zenitel Wiki

AlphaCom icon 300px.png
OBS icon This product is obsolete. Refer to Grandstream HT801


Handy Tone.jpg

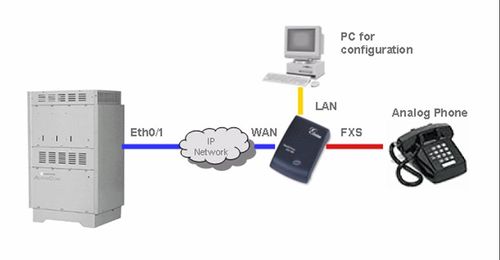

  • HandyTone-488 is an Analog Telephone Adapter (ATA) with one FXS port
  • If HandyTone-488 loose power, registration or network, you get pass-through from telephone to PSTN (FXO port)
  • The LAN port has default IP address 192.168.2.1
  • Connect a PC directly to this port – the DHCP server will assign IP address to the PC
  • Login with password admin

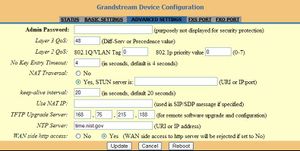

  • Enable ”WAN side http access” in Advanced Settings
Handy Tone.2.jpg


  • Do an update and reboot!
Handy Tone.3.jpg

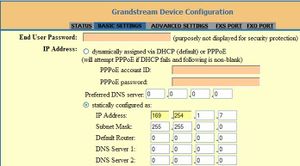

  • The WAN port is then connected to the AlphaCom Ethernet port directly or on the same LAN as the AlphaCom
  • Administration of the HandyTone can then be done from the WAN side also
  • Set WAN IP address in Basic Settings
Handy Tone.4.jpg

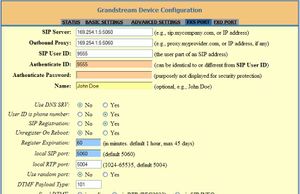

  • FXS Port settings
- SIP Server: Equal to the AlphaCom IP address
- Outbound Proxy: Equal to the AlphaCom IP address
- User ID: Equal to the Directory Number in AlphaPro
- Enable ”User ID is phone number” and “SIP registration”
Handy Tone.5.jpg

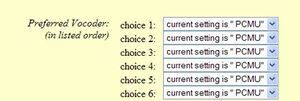

  • FXS Port settings
-Set preferred codec to be “PCMU” (G711μlaw) on all choices:


Configuration of AlphaCom E

The AlphaCom E needs to be configured with a SIP registrar node.
