IP Desk Video Display Factory Reset

There are three different ways to reset the Video Moduleto factory default settings. Note that this procedure resets the LCD Video Module only, not the IP station itself.

Factory default values:

• Display IP address: 169.254.1.101
• Username: admin
• Password: alphaadmin

From the display

Available from FW v1.11 it is possible to do factory reset on the video module from the screen.

• Press the main screen (anywhere but the four buttons at the bottom) to get to the option screen.
• From the options screen press and hold the option screen (again, anywhere except for the buttons) until the factory reset dialogue appears.

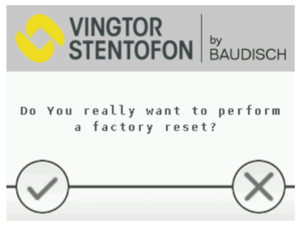

• In the factory reset dialogue press the check-mark in the lower left corner. (Press the lower right corner to exit). The display should now do a factory reset.

From the web interface

Available from FW v1.7 it is possible to do factory reset on the display module from the inbuilt web interface.

• Go to System -> Factory Reset. This will reset the LCD screen to factory settings.

Hardware reset

There is an the option for a factory reset via hardware. To do this you have to remove the covers on the top of the station, then loosen the screws and open the station, and short circuit the two test points for 10 seconds. The display should then do a factory reset.

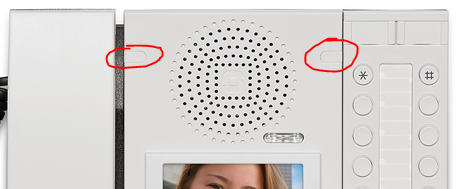

Remove covers to get access to the screws

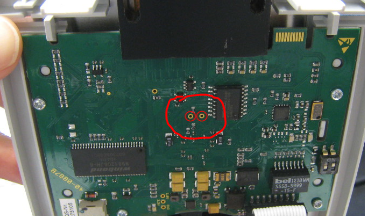

Test points to be shorted
