TKIE Connections

From Zenitel Wiki

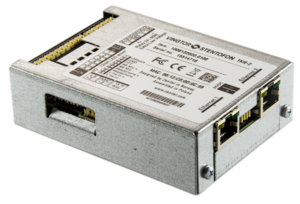

This article describes all Turbine Extended Kit connections.

There are two RJ-45 ports located on the Turbine Extended Kit that are used for PoE/LAN Ethernet connection.

There are 6 I/O connectors available on the Turbine Extended Kit. These connections are used as digital input (eg. from a closing contact) or LED driver output (12mA max).

Ethernet/Power The Turbine Extended Kit supports Power over Ethernet (PoE, IEEE 802.3 a-f) where power can be drawn from either the spare line or signal line.*
Secondary Power If PoE is not available, the Turbine Extended Kit can be powered from a 24-48 VDC local power supply.**
Relays Two Double Throw relay contacts with 60W switching power. COM, NO, NC contacts are provided.
Input/Output 6 I/Os are available. Each I/O can be configured as either input or a 12mA LED driver output.
Audio Line Out A balanced 600 ohm audio line out with induction loop signal
Note icon Use cables crimped with ferrules for terminal block connectors


  • When the Turbine Kit is connected to the network, its IP address is automatically obtained from a DHCP server or an IP address in the range 169.254.x.x will be assigned.
  • To make the kit speak its IP address:
- connect a speaker to the speaker output
- connect a button to input 1
- press the button after startup


Power Supply

The Turbine Extended Kit supports Power over Ethernet (PoE, IEEE 802.3 a-f) where power can be drawn from either the spare line or signal line. If PoE is not available, the Turbine Extended Kit can be connected to a 24 VDC local power supply.

Network Connection

Turbine Extended Kit


There are two RJ-45 ports located on the Turbine Extended Kit that is used for PoE/LAN Ethernet connection.

Optional Speaker/Microphone connector

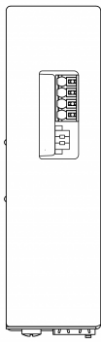

Side connectors



See also Turbine Extended Board Connectors
