Import Users and Stations from .csv file

Import Users and Stations from .csv

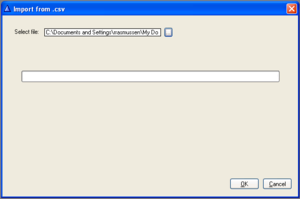

Import window

As from AlphaPro version 11.2.3.4 a feature for importing data from a .csv file was added. The function was improved in version 11.5.3.0.

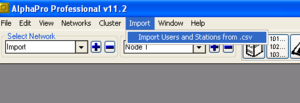

The Import function is available from the Main Menu in AlphaPro.

• The .csv file must use ";" (semicolon) as field delimiter. The first line in the file must have data, do not use it for header information (list of field names)
• The .csv data is imported into the currently selected Node. NOTE: All groups are 'emptied' before the Import function starts.

File format from AlphaPro version 11.5.3.0

<directory number>;<id number>;<groups>;<group access level>;<cos>;<display text>;<udp groups>;<exp parameter>;;<mail in idle>;<global>;<ccoip>

where

• <groups> can now contain a list of groups separated by comma: ..;1,2,30;..
• <udp groups> can contain a list of udp groups separated by comma: ..;1,8;..
• <always private>, <mail in idle>, <global> and <ccoip> is either 0 or 1 for respectively unchecked and checked

If the <global> field is 1, the <directory number> will be added as a feature 83 number with the <id number> as node number. If the <global> field is 0 (or empty), the <directory number> will be added as a feature 9 number with the <id number> as physical number. If a global number is added, only <directory number>, <id number> and <display text> are used. All other fields are ignored.

If the <ccoip> field is 1, the station with physical number = <id number> will be set to be an CCoIP station. If the field is 0 (or empty) the station will keep the CCoIP setting it had before the import process.

File format in AlphaPro version 11.2.3.4

<directory number>;<physical number>;<group>;<group access level>;<cos>;<display text>

The Group Access Level Column can have these values: 0=Low, 1=Medium, 2=High

Example:

101;1;1;2;16;TEST-TELEPHONE
102;2;1;2;4;Wheelhouse
103;3;1;2;4;Wheelhouse
104;4;1;0;1;Station 4
..
etc.
