TKIE-1
| Dimensions (WxHxD) | Weight | Partnumber | |

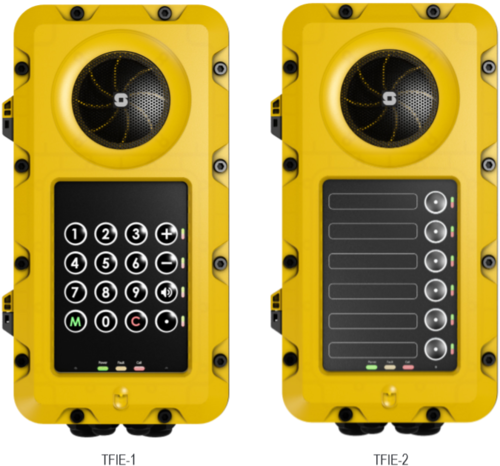

| TFIE1 | 346 x 178 x 101 mm | 1.9 kg | 1008122010 |
| TFIE2 | 346 x 178 x 101 mm | 1.9 kg | 1008122020 |
| TFIX1 | 346 x 178 x 101 mm | 1.9 kg | 1008123010 |
| TFIX2 | 346 x 178 x 101 mm | 1.9 kg | 1008123020 |
| TFIX3 | 346 x 178 x 101 mm | 1.9 kg | 1008123030 |
| TKIE-1 | 65 x 100 x 25 mm | 0.1 kg | 1008132010 |
TFIE/TFIX Extended Station Dimensions
