	Dimensions (WxHxD)	Weight	Partnumber
IP Desktop Master with Handset	225 x 176 x 75 mm	0.7 kg	1008001000
IP Desktop Master	168 x 176 x 75 mm	0.5 kg	1008000000
IP Flush Master	125 x 280 x 33 mm	0.63 kg	1008031000
IP OR Master	125 x 280 x 30 mm	0.63 kg	1008015000
IP Dual Display Station	72 x 270 x 139 mm	0.4 kg	1008007000
Master Station Kit	88 x 152 x 20 mm	250 g	1008093000
Gooseneck Microphone	300 mm (length)	0.09 kg	1008097500
DAK-48 Unit	125 x 280 x 30 mm	0.65 kg	1008010100
Handset - IP Flush Master	67 x 280 x 41 mm	0.4 kg	1008097100
IP Vandal Resistant Substation	92 x 180 x 46 mm	0.8 kg	1008041100
IP Vandal Resistant Substation (3 gang)	114 x 160 x 60 mm	0.8 kg	1008051000
Substation Kit	72 x 110 x 20 mm	0.1 kg	1008090200
IP Heavy Duty	205 x 320 x 120 mm (148 mm with door)	5.0 kg	1008072200
IP Video Door Station - CP	150 x 260 x 45 mm	1.0 kg	1401110100
IP Video Door Station - Axis	150 x 260 x 45 mm	1.0 kg	1401110200

IP Desktop Master Station with Handset

The IP Vandal Resistant Substation (part no.1008051000) is flush mounted in a 3 Gang backbox (part no. 1008098300).

The mounting and assembly kit includes gaskets, a 2-inch loudspeaker, loudspeaker housing, and microphone with mounting block for call LED.

@@ Line 54: / Line 54: @@
 == Backbox ==

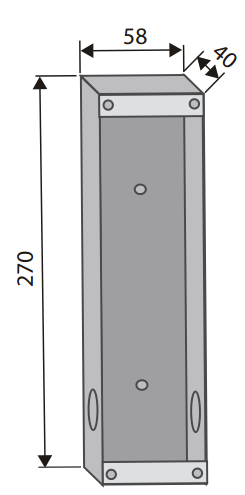

 [[File:IP Station Dimensions - 6.PNG|''Backbox for Handset'']]
-= IP Substation =
-== Dimensions ==
-[[File:IP Station Dimensions - 16.PNG|''IP Substation Dimensions - Front view'']]
-[[File:IP Station Dimensions - 17.PNG|''IP Substation Dimensions - Side view'']]
-== Flush Mounting ==
-The IP Vandal Resistant Substation (part no. 1008041100) can be mounted in a flush mount backbox (part no. 1008098100) or a surface mount backbox (part no. 1008098000).<br/>
-[[File:IP Station Dimensions - 18.PNG|''IP Substation - Flush Mount Backbox'']]
-== Surface Mounting ==
-[[File:IP Station Dimensions - 19.PNG|''IP Substation - Surface Mount Backbox]]
 = IP Substation (3 Gang) =
