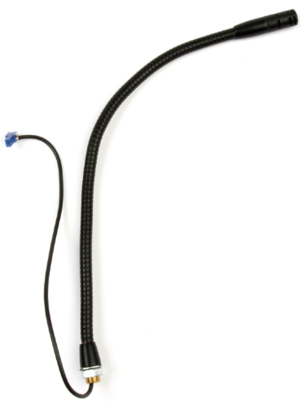

:* Item number: 1008097500 | :* Item number: 1008097500 | ||
This item applies to the IP Flush Master Station and the IP Master Station Kit. | This item applies to the IP Flush Master Station and the IP Master Station Kit. | ||
Revision as of 19:08, 27 October 2016
- Item number: 1008097500
This item applies to the IP Flush Master Station and the IP Master Station Kit.
| Dimensions (WxHxD) | Weight | |
| Gooseneck Microphone | 90 x 32 x 45 mm | 0.1 kg |
To install the Gooseneck Microphone:
- Remove the cover plug from the opening for the microphone on the front panel.
- Thread the microphone cable through the opening, the lock washer and nut.
- Tighten the nut on the microphone’s threaded stud.

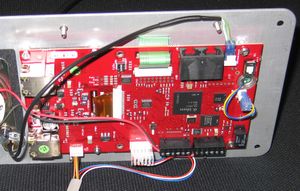

- Insert the microphone’s IDC socket into the upper two pins of the 3-pin header (J7) located at the lower left side of the station. The signal wire (white) should be on the top pin while the ground wire (green) should be on the bottom pin.
- Slide the S1 switch (bottom back of station) to EXT to activate the external microphone function.
See Related Article INCA Master Station Kit Board Connectors.

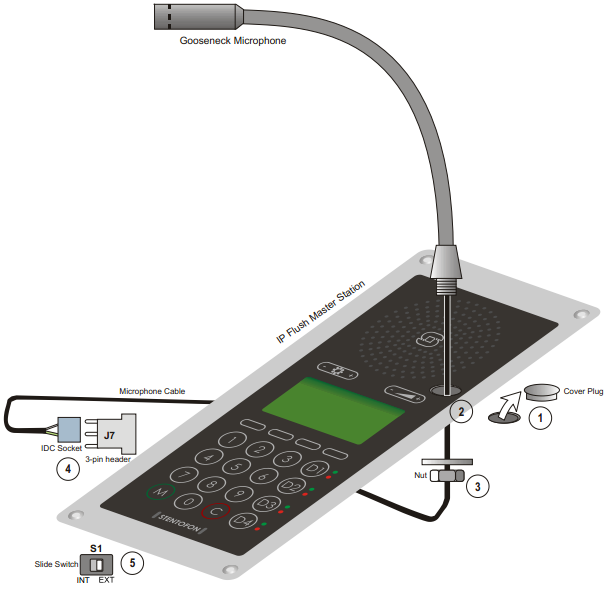

Installing the Gooseneck Microphone
