{{AS}}
{{AS}}
This menu option is only available for [[:Category:Turbine|TFIE and TFIX stations]].
* Select '''Advanced AlphaCom''' > '''Keyboard Settings''' from the menu
[[File:TFIE Keyboard.PNG|thumb|left|500px]]
<br style="clear:both;" />
The keyboard layout was changed and by inspecting the PCB number it will reveal the type of keyboard to use.
* PCB 8127_2 = Keyboard Type 0: Turbine Extended Keyboard Matrix
* PCB 8127_1 = Keyboard Type 1: Turbine Extended Old Keyboard Matrix
The PCB number can be found by opening the front and looking at the top of the keyboard PCB.
[[File:IMAG0371.jpg|thumb|left|500px]]
<br style="clear:both;" />
[[Category: Turbine Configuration]]




Revision as of 12:31, 20 July 2017

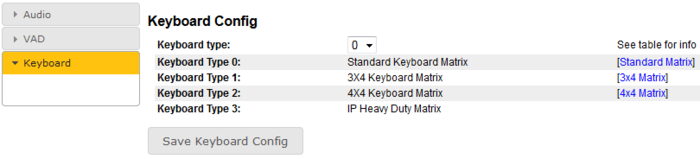

IP-StationWeb Keyboard.PNG


Keyboard Config

Description     Information
Keyboard type:   See table for info
Keyboard Type 0: Standard Keyboard Matrix Standard Matrix
Keyboard Type 1: 3X4 Keyboard Matrix 3x4 Matrix
Keyboard Type 2: 4X4 Keyboard Matrix 4x4 Matrix
Keyboard Type 3: IP Heavy Duty Matrix
