Voice Paging from IP Substation

Scenario: A group of IP Substations should be able to do voice paging to a group of speakers by simply pressing the call key, speaking and releasing when finished.

Create the receiver group

In AlphaPro Groups->Local groups select the group you want to use and press change. Give the group an appropriate name and set gong type to No Gong:

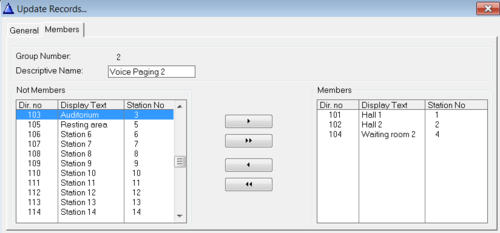

Select the Members tab and move the receivers to the Members list:

UDP Membership

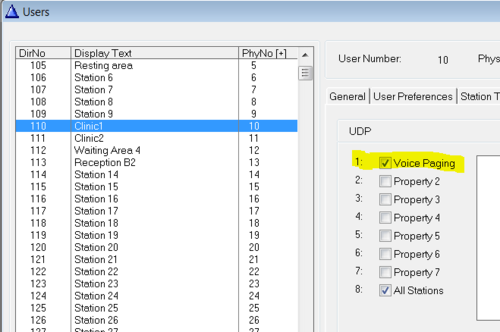

Put all IP Substation that should be able to do Voice Paging in a common UDP group:

Event Handler

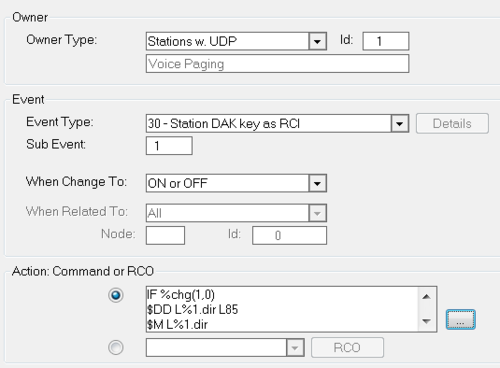

Use the event handler (Exhcange&System->Events) to create this event:

Action commands:

IF %chg(1,0)          ->Check if event goes on or off. If event is ON proceed to next line, else jump to next line after ENDIF
$DD L%1.dir L85       ->Owner of event dials 85
$M L%1.dir            ->Owner of event presses the M key
STOP                  ->Stop event
ENDIF                 ->End of IF statement
$MREL L%1.dir         ->Release M key for owner of event
$C L%1.dir            ->Order owner of event to cancel the call
