Latest revision as of 13:03, 2 May 2023

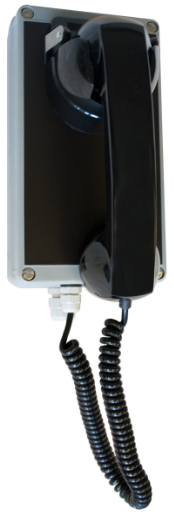

The Hotline Station - 1007110000 is an analog intercom station. It is connected to an ASLT line card in an AlphaCom XE7, AlphaCom XE20 or AlphaCom XE26 server using 2 pairs of wires.
Highlights
- Made for critical communication for roadside and tunnel environments
- Water and dust resistant
- Design in flame and chip resistant plastic
Wiring
The cabling from the AlphaCom server to the intercom station is star wiring. Two twisted pairs of wires are required. The maximum distance depends on the cable diameter:
- 0.5 mm wires: 1.4 km
- 0.6 mm wires: 2.0 km
- 0.9 mm wires: 4.0 km
The station line is connected to screw terminals inside the station.
For details on connection at the AlphaCom server side, see ASLT - AlphaCom Subscriber Line Board
