Revision as of 12:46, 3 September 2024
Contents
Highlights
- Handheld microphone for ECPIR-3P and ECPIR-P Call Panels
- Bracket included
- Push-To-Talk button
- 1.5-meter curly cord
Installation
Insert the 5-pin DIN plug on the handheld microphone in the microphone connector socket on the ECPIR Call Panel.
Configuration
- Log on to the station web interface

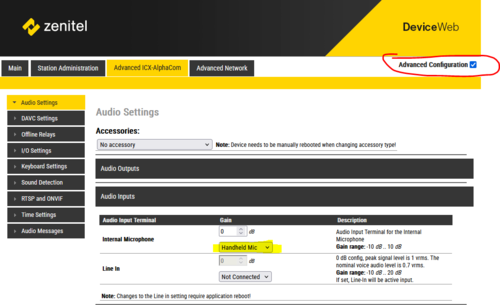

- In Station Main > Main Settings, set Accessory to "Handheld Microphone".
Dimensions
Microphone
Bracket
| Dimensions (WxHxD) | Weight | |
| Bracket (HxWxD) | 40 x 43 x 45 mm | 0.2 kg |
