Latest revision as of 16:01, 27 March 2025
The status of the ZSD-1 intercom is indicated by a circular light around the call button.
- Idle: White
- Ringing: Rotating white
- Call established: Yellow (Pulsating when audio is being played in the speaker)
- Active relay: Green (Door is open)
- Device offline: Flashing orange
When the unit is offline it will speak its IP address when the call button is pressed.
 |

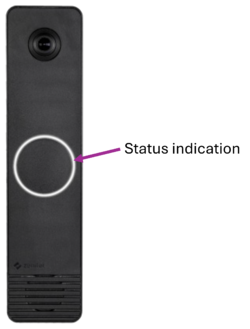

| The status is indicated by a circular light around the call button. |
