| | {{stub}} | | {{stub}} |
| | This article describes how to connect headset to the [[IP Flush Master - 1008031000]] or to the [[IP Master Station Kit - 1008093000]]. | | This article describes how to connect headset to the [[IP Flush Master - 1008031000]] or to the [[IP Master Station Kit - 1008093000]]. |
| − | [[File:IPFlush Headset.PNG|thumb|500px|Headset AK5058HS IP Flush Master]] | + | |

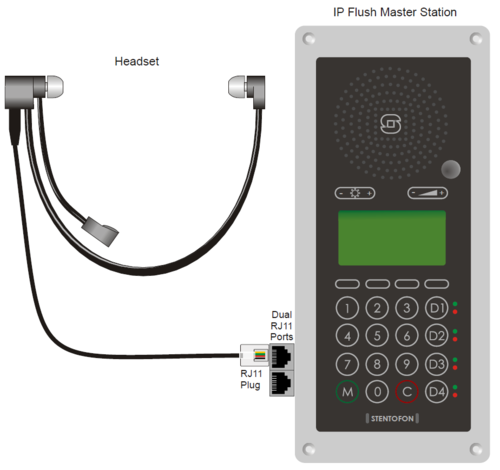

| | + | [[File:IPFlush Headset2.PNG|thumb|500px|Headset connection to IP Flush Master]] |
| | | | |
| | | | |
| Line 8: |
Line 9: |
| | '''Headset connections:''' | | '''Headset connections:''' |
| | [[File:IP Master Board 8.PNG|left|thumb|200px|J8]] | | [[File:IP Master Board 8.PNG|left|thumb|200px|J8]] |
| − | <br style="clear:both;" />
| |
| | *Pin 7 Mic+ | | *Pin 7 Mic+ |
| | *Pin 8 Spk+ | | *Pin 8 Spk+ |
| Line 15: |
Line 15: |
| | *Pin 11 PTT Ground | | *Pin 11 PTT Ground |
| | *Pin 12 PTT (Not currently supported by SW) | | *Pin 12 PTT (Not currently supported by SW) |
| − |
| |
| − | =Handset revision 1008071000.0300 or newer (from May 2013)=
| |
| − | * Used with IP Flush Master revision 1008031000.0400 or newer: The handset is directly compatible with the IP Flush Master. Connect the handset to the handset connector of the station.
| |
| − | * Used with IP Flush Master revision 1008031000.0301 or older:
| |
| − | :* Update the software of the IP Flush Master to version 02.3.3.1 or later
| |
| − | :* Log on to the StationWeb. In '''Advanced Configuration''' -> '''Audio''', enable the flag “Handset in Headset Slot”
| |
| − | [[File:IPFlushComp1.PNG|thumb|left|500px|How to enable the flag “Handset in Headset Slot” in '''Advanced Configuration''' -> '''Audio''']]
| |
| − | <br style="clear:both;"/>
| |
| − | :* Connect the Handset to the HEADSET-connector of the station
| |
| − |
| |
| − | =Handset revision 1008071000.0201 or older=
| |
| − | * Used with IP Flush Master revision 1008031000.0301 or older: The handset is directly compatible with the IP Flush Master. Connect the handset to the handset connector of the station.
| |
| − | * Used with IP Flush Master revision 1008031000.0400 or newer:
| |
| − | :* Upgrade the handset to revision 0300 by dismantling the handset by unscrewing the two screws, flip the circuit board over and solder a strap as shown in the image.
| |
| − | [[File:IPFlushComp2.png|left|thumb|500px|Upgrade the handset to version 0300 by adding a strap]]
| |
| | <br style="clear:both;" /> | | <br style="clear:both;" /> |
| − | :* Connect the handset to the handset connector of the station.
| |
| | | | |
| − | =About noise in the ear-piece of the handset=
| + | [[File:IPFlush Headset.PNG|thumb|500px|Headset AK5058HS IP Flush Master]] |
| − | When handset revision 1008071000.0201 or older is used with IP Flush Master revision 1008031000.0301 or older, one might experience noise in the ear-piece of the handset. This can be improved by upgrading the handset to revision 1008071000.0300, and use the headset connector of the station.
| |
| − | | |
| − | Procedure:
| |
| − | * Dismantle the handset by unscrewing the two screws
| |
| − | * Flip the circuit board over and solder a strap as shown in the image
| |
| − | * Update the software of the IP Flush Master to version 02.3.3.1 or later
| |
| − | * Log on to the StationWeb. In '''Advanced Configuration''' -> '''Audio''', enable the flag “Handset in Headset Slot”
| |
| − | * Connect the handset to the HEADSET-connector of the station
| |
| − | | |
| − | | |
| − | NOTE: The option to use the headset input also for handset is a workaround available in AlphaCom-mode only.
| |
| | | | |
| | | | |
