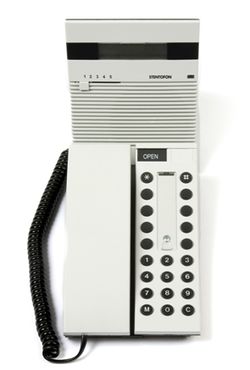

Desk/Wall Master Station 1007001310

Highlights

  • Desk top master station with full access to all features in Stentofon Exchange
  • Complete with a 2 x 16 character alphanumeric display providing caller identification, on-line help and a directory list.
  • 10 programmable single touch keys with name tags.
  • Handset for confidential conversations.
  • Selectable private / open mode.
  • Electret microphone with automatic sensitivity adjustment.
  • 1W loudspeaker and volume control bar.
  • Attractive award winning design.

Description

This desk top master station gives full access to all features in the Stentofon exchange. The station includes pro- grammable single touch keys, handset and a 2 x 16 character alphanumeric display providing caller identification, on-line help and a directory service amongst other features. The station is also equipped with a private / open switch for choosing between direct incoming calls and announcement of calls by a ringing tone.

An 1W (63 Ohm) loudspeaker is provided along with a volume control bar. Further, the station’s electret microphone automatically adjusts its sensitivity according to the input level. When in conversation, the station’s red lamp lights to indicate that the microphone is live.

The station must be provided with a cable for connection to a wall socket. Alternative cable lengths and wall plugs are available (see next page). Required cable must be ordered separately.

Two pair twisted telephone cable (0.5 mm2 / 24 AWG) is required between the exchange and the station, which can be positioned up to 1400 meters / 4600 feet away from the exchange (maximum 240 Ohm loop resistance). Longer distances are possible with heavier wires.

Wiring

DeskWall Master Station 1007001310 Wiring.jpg










Station Drawing

DeskWall Master Station 1007001310 Station Drawing.jpg
