Obsolete icon This product is discontinued!

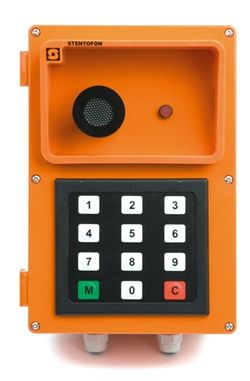

Noise Cancelling Industrial Master Station

Highlights

  • Fully equipped master station with free access to all extensions and features
  • Rugged waterproof and chip-resistant casing of orange makrolon
  • Noise cancelling microphone with protective flange
  • Red microphone live lamp
  • Built-in 10W (8 Ohm) VOX operated power amplifier
  • For use with external loudspeaker with or without power amplifier
  • Screw terminals for easy connection of installation cables

Additional Documentation

For more documentation please see http://www.zenitel.com/product/industrial-master-station-0

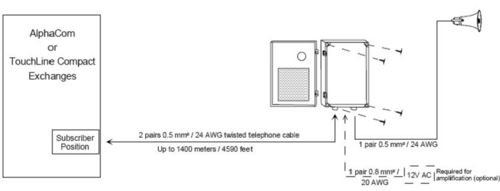

Installation

Noise Cancelling Industrial Master Station 100 7082 000 Installation.jpg


Connections

Industrial Analogue Connections.png


Accessories

VML-1520

  • Horn Loudspeaker, 15W/20 Ohm, IP-66

VMP-211

  • Wall Mount Handset Unit (with PTT key), IP-44

VMP-250

  • Wall Mount Handset Unit (with PTT key), IP-65

EOTRF-10115

  • 220VAC/12VAC Mains Transformer (for power amplifier option)
