Heavy Duty Industrial Master Station - 1007086000
From Zenitel Wiki
The Heavy Duty Industrial Master Station is an analog intercom station. It is connected to an ASLT line card in an AlphaCom XE7, AlphaCom XE20 or AlphaCom XE26 server using 2 pairs of wires.
Contents
Highlights
- Master station with free access to all extensions and features
- Rugged waterproof and dustproof casing of orange aluminium alloy
- Microphone along with red microphone live lamp
- External loudspeaker. Sound level adjustable with a potentiometer inside the station
- Built-in 10 W (8 ohm) VOX operated power amplifier for external loudspeaker
- Screw terminals for easy connection of installation cables
- Equipped with 4 direct access keys
Dimensional Drawing

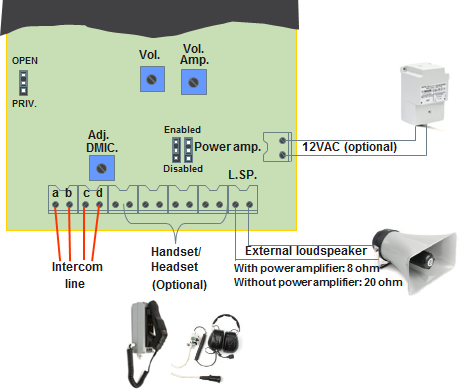

Connections
For server end connection details see ASLT - AlphaCom Subscriber Line Board
