Tamper and Vandal Proof Station - 1007061000
From Zenitel Wiki

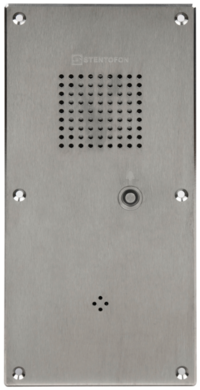

The Tamper and Vandal Proof Station - 1007061000 is an analog intercom station. It is connected to an ASLT line card in an AlphaCom XE7, AlphaCom XE20 or AlphaCom XE26 server using 2 pairs of wires.
Highlights
- Analogue intercom station specially designed for prison and correctional facilities
- Advanced safety solution including scream, assault and tamper alarms
- Vandal proof design with 2.5 mm steel front, sensor button, microphone/speaker protection and water resistant (IP65)
- Integrated light signaling system
- Programmable I/O ports for controlling door status, lamps, TV sets, sensors and more
- Redundant backup for power and signaling
Connections and configuration
|
Due to the way in which sensor keys operate, the Vandal and Tamper Proof Stations 1007061000 and 1007063000 do not always work reliably when these stations are put into a humid or wet environment. The station should not be exposed to humid environment of water drops. See the description of Sensor Keys for more details. |
