SDS-1

IP Phone SDS-1

1 Getting Started
- 1.1 Installing the Phone with Phone Stand
- 1.2 Installing the Phone with Wall Mount
2 Connecting the phone
3 Configuration
- 3.1 Register to AlphaCom server
  - 3.1.1 Account setup
  - 3.1.2 Audio Settings
- 3.2 Register to Pulse server
  - 3.2.1 Account setup
  - 3.2.2 Pulse Group Call
4 Dimensions
5 Related information

Getting Started

Installing the Phone with Phone Stand

Insert the hooks on top of the stand into the slots on the back of the phone. (You can either use the upper OR the lower slots)
Firmly slide the stand upward to lock it in place

Installing the Phone with Wall Mount

Insert all 4 hooks located at the front of the wallmount into the slots on the back of the phone.
Firmly slide the wall mount upward to lock it in place.
Attach the phone to the wall via the wall mount holes.

Pull out the tab from the handset cradle (see figure below).
Rotate the tab and plug it back into the slot with the extension up to hold the handset while the phone is mounted on the wall.

Connecting the phone

Connect the handset and main phone case with the phone cord.
Connect the LAN port of the phone to the RJ-45 socket of a PoE switch using the Ethernet cable.
The LCD will display provisioning or firmware upgrading information. Before continuing, please wait for the date/time display to appear.
Using the web configuration interface or the keypad configuration menu, you can further configure the phone using either a static IP or DHCP.

Configuration

The IP phone can only operate in SIP mode.

Ensure your phone is properly powered up and connected to the Internet.
Press the Menu key to enter the menu of the phone.
Navigate to Status > Network Status and press the Menu key to check the IP address.
Enter the phone’s IP address in your PC’s browser
Log in by entering the default Username: admin and Password: alphaadmin

Register the account on the SDS-1 by selecting ACCOUNTS > Account 1/2 > General Settings to configure Account Name, SIP Server (AlphaCom or Pulse), SIP User ID (Extension Number).

Register to AlphaCom server

Account setup

Select ACCOUNTS > Account 1 > General Settings

Enter the values shown above for the parameters

Account Active: Check Yes button
SIP Server: IP address of AlphaCom server
SIP User ID: Directory Number of SDS-1 phone
Authenticate ID: Same as SIP User ID

For changes to take effect, it may be necessary to temporarily disable the account. First check the No button for Account Active, then click Save and Apply. Once this is done, re-enable the account by checking the Yes button for Account Active followed by Save and Apply again.

Audio Settings

Check in AlphaPro under Users & Stations the codec that has been selected for the SIP phone (normally G722)
Select Account 1 > Audio Settings

Set all codecs from the Preferred Vocoder list to the one defined in AlphaPro, i.e. G722.

Register to Pulse server

Account setup

Select ACCOUNTS > Account 1 > General Settings

Enter the values shown above for the parameters

Account Active: Check Yes button
SIP Server: IP address of intercom station set as Pulse Server
SIP User ID: Directory Number of the SDS-1 phone
Authenticate ID: Same as SIP User ID

Pulse Group Call

The Pulse Server transmits group calls using IP multicast paging. Each group call uses its own unique multicast IP address. To find the multicast IP address:

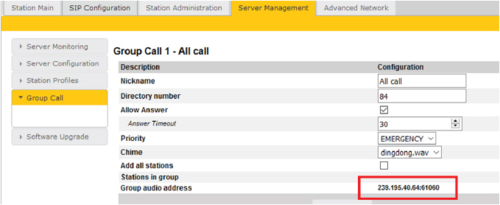

Log into the Pulse Server
Select Server Management > Group Call

Make a note of the multicast addresses under Group audio address.

Log into the SDS-1
Select Setting > Multicast Paging

Set Multicast Paging Codec to G722
Enter the multicast addresses under Listening Address
Click Save and Apply

When a Group Call is activated, the SDS-1 will automatically broadcast the audio in the loudspeaker. The SDS-1 will display the text of the Group Call as entered under Nickname. If the SDS-1 is busy in a regular call when a Group Call is made, it will by default not play the Group Call audio. If Paging Barge is set to value 2 or higher, the current call will be placed On Hold, and the Group Call audio will be broadcast. When the Group Call is ended, press the Hold button to resume the regular call.
