IP Desk Dimensions & Mounting Instructions

From Zenitel Wiki

Revision as of 14:06, 4 December 2020 by Roarl (talk | contribs) (→‎Wall Mounting)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
  Dimensions (WxHxD) Weight
IP Desktop Master with Handset 225 x 176 x 75 mm 0.7 kg
IP Desktop Master 168 x 176 x 75 mm 0.5 kg

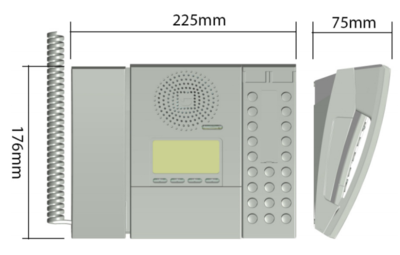

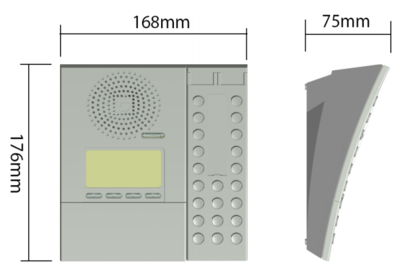

IP Desktop Master with Handset - Dimensions IP Desktop Master - Dimensions

Wall Mounting

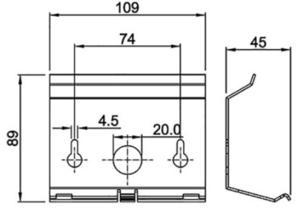

IP Desktop Master - Wall Mounting
