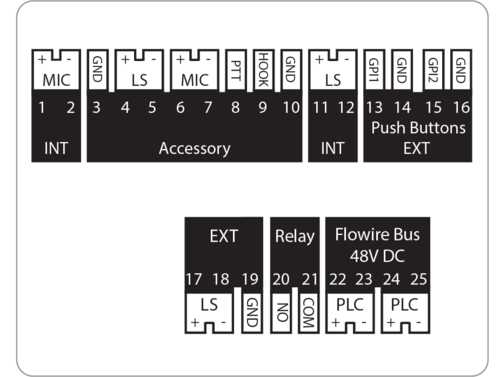

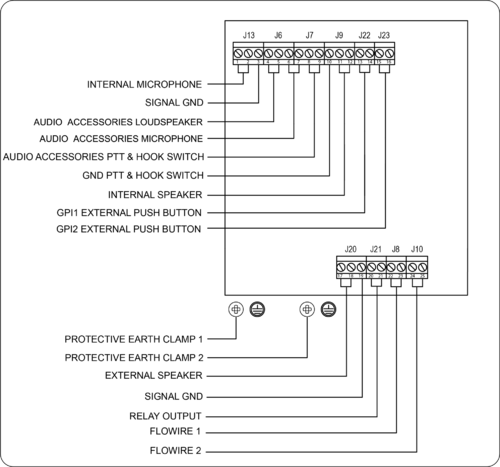

All connections are made on the main board inside the enclosure of the Turbine Ex station.
Flowire connection
Procedures for connecting power supply, LAN network and Inputs/Outputs are described in the manual A100K12133 EXIGO Ex Access Panels and Turbine Ex Intercoms Installation & Maintenance Procedures.
