TMIS Dimensions & Mounting Instructions

	Dimensions (WxHxD)	Flushmounted (WxHxD)	Weight
TMIS-1	117 x 117 x 39 mm	117 x 117 x 5.5 mm	0.3 kg
TMIS-2	114 x 147 x 58 mm	--	0.5 kg
TMIS-4	117 x 117 x 41.4 mm	117 x 117 x 7.6 mm	0.3 kg
TMIV-1+	117 x 117 x 43.5 mm	117 x 117 x 8.5 mm	0.3 kg

TMIS Station Dimensions

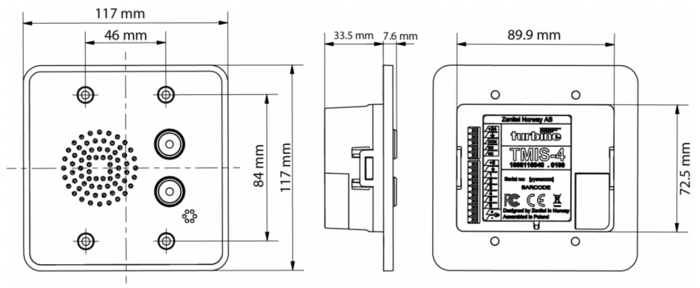

TMIS-1 & TMIS-4 Station

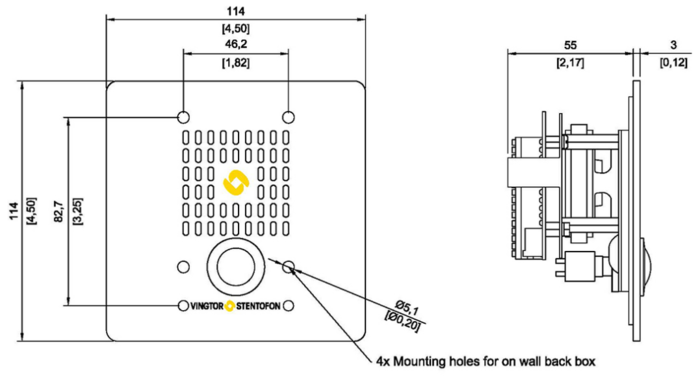

TMIS-2 Station

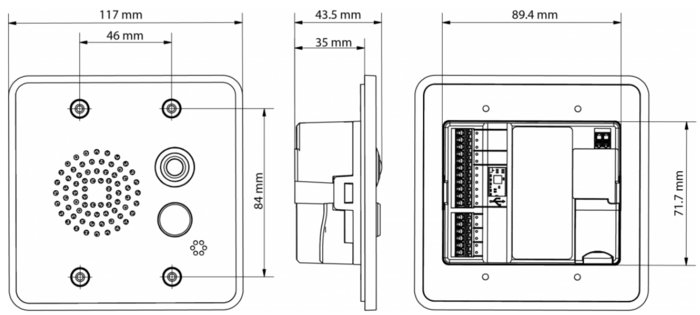

TMIV-1+ Station

Onwall Surface Mounting

On-Wall Surface Mount Back Box - TA-12 or TA-13 to be used.

Flush Mounting

Flush Mount 2-Gang Back Box - TA-2 or TA-3 to be used

Note! It is recommended to utilize back boxes with weep holes at the bottom

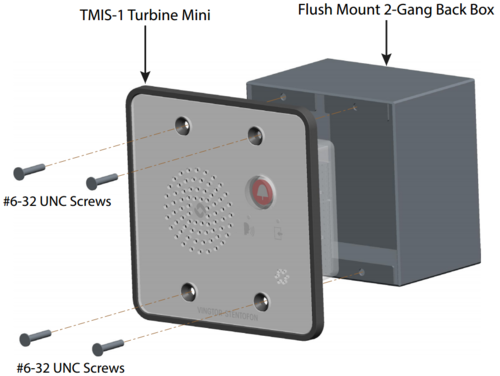

Flush Mounting Procedure

1. Mount the 2-gang back box into the wall

–Plug the Ethernet cable into the RJ-45 port on the station

2. Fasten the TMIx-x intercom to the back box with four #6-32 UNC countersunk-head screws

To attain the rated ingress protection of IP44, flush mounting of TMIV-1+ must only be done on a surface that is completely planar, smooth, and clean. Any surface irregularities must not exceed 0.5 mm. If this is not achievable in a reliable manner, appropriate sealant or filler should be applied to seal the gap between the station and the wall. Optionally, the on-wall back box TA-32 could be used.
