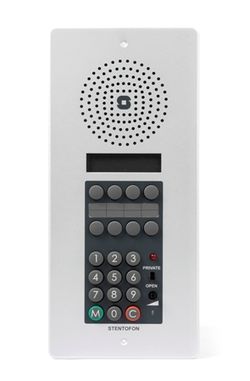

Wall Master Station, Display - 1007042000

Highlights

Fully equipped master station with free access to all extensions and features
Eight freely programmable single touch keys
2 x 16 character alphanumeric display
Conformity with the latest Vingtor-Stentofon station design with rugged front plate in anodized brushed aluminium and silicone rubber keypad
Private / Open switch
Red “microphone live” lamp
Built-In 63 Ohm / 1W loudspeaker
Adjustable loudspeaker volume
Excellent sound quality

Additional Documentation

For more documentation please see http://www.zenitel.com/product/wall-master-station

Installation

Connetion diagram of the 7042 station

Programming DAK

The upper row of DAK keys are DAK 3, 5, 7 and 9 counted from left to right. The lower row of DAK keys are DAK 4, 6, 8 and 10 counted from left to right.

Mounting

The station can be mounted in:
