Desk/Wall Master Station, Display - 1007072090
From Zenitel Wiki
Highlights
- Desk master station with full access to all features in the Vingtor-Stentofon AlphaCom XE exchange
- Can be used as wall mounted station using the optional bracket 1008091100
- Easy operation provided by a 2 x 16 character alphanumeric display and ten direct access keys
- Queuing of incoming call requests according to priority and time of arrival, 256 priority levels
- Superb audio quality
- Handset for confidential conversations
- Advanced supervision functions

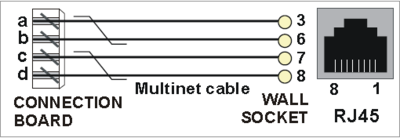

Wiring
For server end connection details see ASLT - AlphaCom Subscriber Line Board
Pin Configuration
Dimensional Drawing
