Heavy Duty Industrial Substation - 1007083000

From Zenitel Wiki

The printable version is no longer supported and may have rendering errors. Please update your browser bookmarks and please use the default browser print function instead.
Obsolete icon This product has been discontinued!

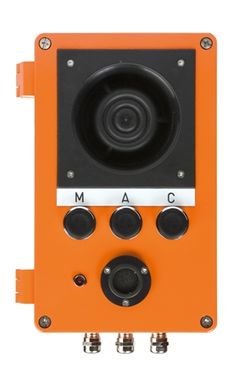

Industrial Substation

Highlights

  • Programmable call button, simplex and cancel buttons
  • Rugged waterproof and dustproof casing of orange aluminium alloy
  • Noise cancelling dynamic microphone along with red microphone live lamp
  • Built-in loudspeaker and possibility to connect an external loudspeaker. Sound level adjustable with a potentiometer inside the station
  • Built-in 10W (8 Ohm) VOX operated power amplifier for external loudspeaker
  • Screw terminals for easy connection of installation cables
  • Freely programmable extension number

Additional Documentation

For more documentation please see http://www.zenitel.com/product/industrial-substation-0

Installation

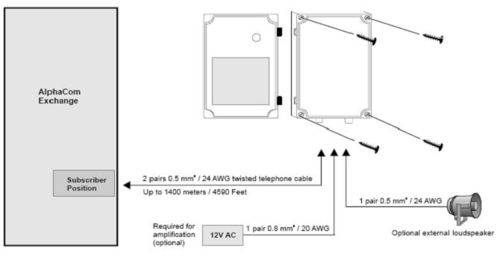

Heavy Duty Industrial Substation 100 7083 000 Installation.jpg


Connections

Industrial Analogue Connections.png
