Configuration of the ZDD-1 (ZCP)

From Zenitel Wiki

This article describes the configuration options for the Display of the ZDD-1 intercom when used with the Zenitel Connect Pro (ZCP).


GUI Settings

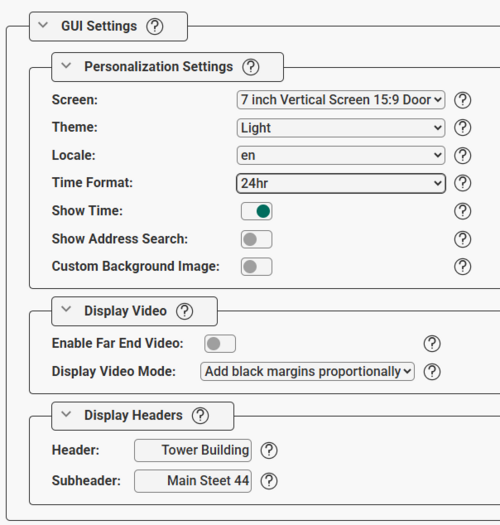

The configuration of the display of the ZDD-1 intercom station is done from the Zenitel Connect Pro web interface. From the Devices and Connections section, select Configuration. Select the ZDD-1 station to configure, the click the Display Settings icon.

General Settings

Personalization Settings

  • Screen: Define the screen size and the aspect ratio of the output on the device display
    • 7 inch Vertical Screen 15:9 Door (Default)
    • Default Start
    • Default Start with Search
  • Theme: Options are:
    • Light: Standard light theme. 6 entries per page. (Default theme)
    • Dark: Standard dark theme. 6 entries per page.
    • Custom: Enables an option to customize the Background color.
    • Light Compact: Light theme for display, with compact elements. 8 entries per page.
  • Locale: Sets the language for the text in the display. Available languages: English, French, German, Dutch, Italian, Spanish, Norwegian, Swedish and Danish. Note: The language in the web interface will not change.
  • Time Format: Select if the time shown in the top right corner of the display should be in 12 or 24 hour format.
  • Show Time: Enable (default) or disable time being displayed in the top right corner of the display.
  • Show Address Search: When enabled a search bar is available for searching in the address book.
  • Custom Background Image: When enabled it provides an option to upload a background image. The file formats .jpg and .png are accepted. Max file size is 2.0MB.


Display Video

  • Enable Far End Video: When enabled the display will show video from the other party during a call.
  • Display Video Mode:
    • Add black margins proportionally (default): The device will display video in its original proportion, but if there are empty spaces, the device will add black edge to it.
    • Original Proportion: Display the video in its original proportion. If the video display proportion is different from the one of the device, the device will stretch or compress video to display it.
    • Cut proportionally: The device will cut video to meet its own display proportion.


Display Headers
ZDD-1 offers an option to show a Header and a Subheader providing two lines of text in the top left corner of the display. This can typically be Company name and Address.

Display Header in ZDD-1


Display Settings

To configure the Display Settings, select the ZDD-1 station from the device list, then click the Display Settings icon.
Brightness Mode Settings

Automatic Brightness adjustments

When Brightness Mode is set to Manual, one can adjust the Brightness with a slider from 0 (off) to 100. The value 50 is default.

When Brightness Mode is set to Automatic, the brightness is controlled by the sensor on the front panel, and will adjust automatically according to ambient brightness.

  • Brightness Offset: Adjust the deviation from the automatic brightness level in the range -99 to +99. Default value = 0.
  • Brightness Levels: Allows choosing the granularity of the automatic brightness levels in the range 5 to 20. A bigger number means more gradual brightness transitions. Default value = 5.
  • Transition Delay: Time between a sudden brightness change in front of the sensor and the corresponding brightness adjustment. Range: 1 to 10 seconds. Default = 1 second.


Display Timeout Settings

Display Timeout
  • Display Timeout: Turns the display timeout feature on/off
  • Enable Timeout Brightness: Turns the timeout brightness on/off
  • Timeout Brightness: Sets the brightness of the device when the timeout is reached
  • Enable Background Overlay: Overlays the background image or color as a screen saver when the timeout is reached
  • Timeout: Sets the time after which the device display dims, defined in minutes and seconds (mm:ss)
  • Wake On Motion: Turns the wake on motion feature on/off
    • Maximum Detection Distance: Adjusts the maximum detection distance of the motion detection sensor in millimeters


Call List (Address Book)

The configuration of the display of the ZDD-1 intercom station is done from the Zenitel Connect Pro web interface. From the Devices and Connections section, select Configuration. Select the ZDD-1 station to configure, the click the Buttons icon. Click on the "+" button to the right to add a new entry. Space is reserved for up to 100 entries.

  • Dial String: The extension number to dial when the entry is pressed
  • Label: Is the main text of the entry
  • Sublabel: Is a sub-text in smaller fonts (optional)

Use the UP and DOWN arrows to the right of the entry to move the entry up or down in the list, and the Recycle Bin icon to delete an entry.

Call List entry


Adding a logo:

  • Select the "+" sign in the Logo rectangle.
    • Select an already existing image, or
    • Add a new logo to the repository by drag and drop the image file into the area indicated

Only .svg (Scalable Vector Graphics) image, max. 500kB, files will be accepted

Adding logo to the call entry
