Device Network Settings (Zenitel Connect Pro)
From Zenitel Wiki
The network settings for a device are done through Network
in the device configuration tile

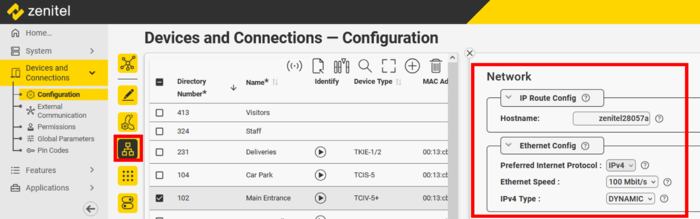

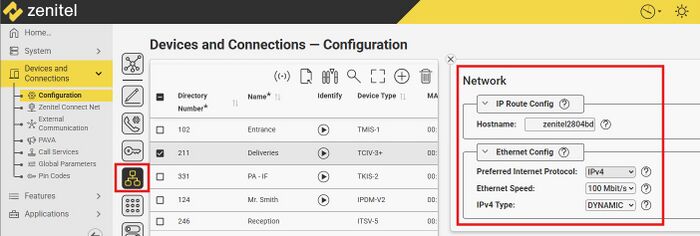

The default network settings for a device is DHCP:
 |
| Device network setting: DHCP |

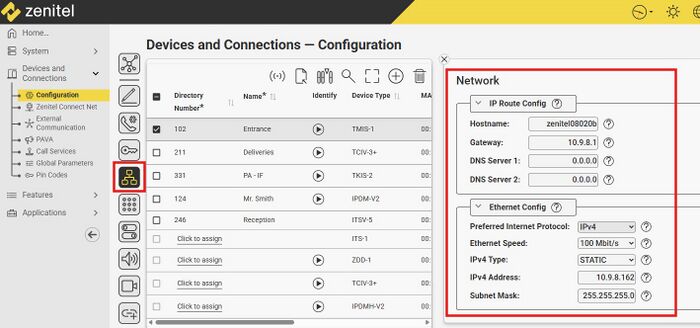

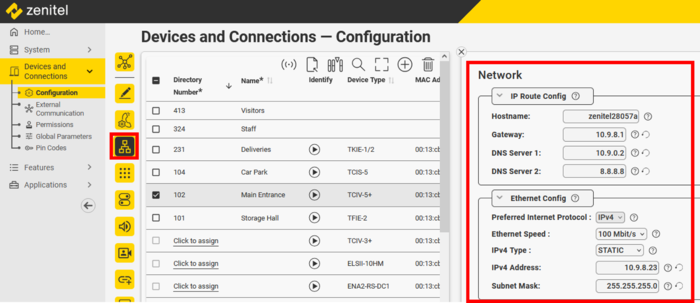

Device network settings with static IP-address. (See Adding Devices with Static IP Address).
 |
| Example of network settings with Static IP address |
- Set IPv4 Type to Static
- Set IPv4 Address:
- Set Subnet Mask
- Optionally set Gateway
- Optionally set DNS Server 1
- Optionally set DNS Server 2
|
Instead of configuring a static IP address on the device, consider using your DHCP server’s option to assign an IP address based on the device’s MAC address. This allows the DHCP server to reserve the address and consistently provide the same IP to the device. |
Hostname
The default hostname of Zenitel device is a concatenation 2 strings
- 'zenitel'
- the last 6 characters of the device MAC-address
The hostname can be changed in the field Hostname. Each device in a network must have a unique hostname.
