OR Master Station - 1006036600

From Zenitel Wiki

Obsolete icon This product is discontinued!

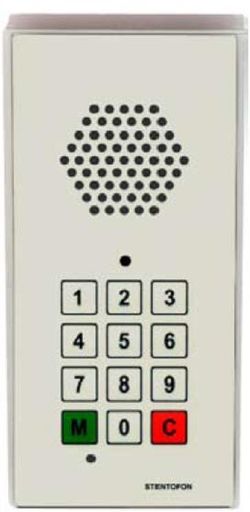

OR Master Station 100 6036 600.jpg

Features

  • The station gives loud-speaking hands-free duplex communication from any location in the room - no one needs to leave their duty and all present staff can follow the conversation
  • High quality intercom station designed to meet the standards of demanding hospital environments
  • Excellent sound quality with 3” loudspeaker and ultrasensitive electret microphone
  • Hygienic, easily to clean and sterilize white Mylar covered faceplate
  • Fully equipped master station with access to all STENTOFON AlphaCom features

Description

The Operation Room Master Station can be flush or surface mounted using tailored back boxes. The station is designed for ease of operation and excellent voice quality.

The front is designed for use in hospital operating theaters and other clean rooms, the Mylar cover eliminates crevices and allows easy wipe-down sterilization. The surface tolerates all common washing and sterilization detergents.

The station will operate on all STENTOFON systems and gives users the quality and reliability required in critical situations. The STENTOFON AlphaCom E is an advanced system with a high level of flexibility, audio quality, system management and supervision. Integration with other security and communication systems like access control, alarms, CCTV, public address and telephone systems is a key feature.

Connection

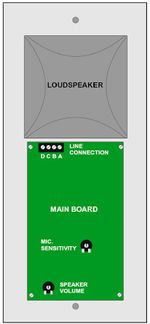

OR Master Station 100 6036 600 Connectino.jpg


Mounting

Flush Mount Back Box

OR Master Station 100 6036 600 Flush mount back box.jpg



On Wall Back Box

OR Master Station 100 6036 600 On wall back box.jpg
