A selection of intercom stations should, by dialing a number on the keypad, or by pressing a DAK key, be able to pulse a relay for 5 seconds.

The stations dial an Event Trigger number (feature 85), say number 9533, to pulse the RCO 3 for 5 seconds.

First, assign the stations to UDP group 1.

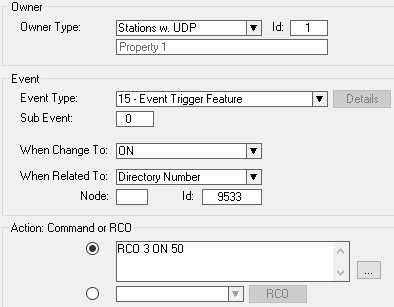

Second, in AlphaPro, go to Exchange and System -> Events, press Insert and create the following event:

Action commands:

RCO 3 ON 50

@@ Line 9: / Line 9: @@
 Second, in [[AlphaPro]], go to [[Exchange_%26_System_%28AlphaPro%29#Events|Exchange and System -> Events]], press Insert and create the following event:
-------------
+[[File:Application20.png|left|thumb|500px]]
-{|
+<br style="clear:both;" />
-|-
-|width="100pt"|'''Event Owner''':
+{{Code2|
-|width="400pt"|Stations w/ UDP Id: 1
+ RCO 3 ON 50
-|-
+}}
-|'''Event type''': || [[Event Trigger (Event Type)|15 – Event Trigger]]
-|-
-|'''When change to''': || ON
-|-
-|'''When related to''': || Directory Number, Id: 9533
-|-
-|'''Action''': || [[RCO - Set Remote Control Output|RCO 3 ON 50]]
-|-
-|}
