External Data Input

The EDI ports are defined in AlphaPro: Exchange & System -> Serial Ports.

• The input message must have a termination character
• Maximum 128 characters. If longer strings, the first 128 characters will be returned, the rest will be ignored.
• Parsing the content is done in the action string in the Event Handler

Event description

Event Owner:	EDI Text Config
Event type:	28 - External Data Input
Subevent:	1 – 10: specifies which EDI port 0: matches all ports
When change to ON:	When valid data is received on EDI port
When change to OFF:	N/A
When related to:	N/A

Additional information

• Context parameters

- %edi is the input text where termination character is excluded

- %sev is the EDI port (sub-event)

• Useful macros and statements

• %scutc - Extract substring by byte (character) position
• %scutf - Extract field, fields defined by delimiter character
• %strlen - Return length of string
• %sscan - Scan for string, extract rest of string after first match
• %scmp - Compare strings
• TMP - Set temporary variable
• %tmp - Read temporary variable

The NUL character (ASCII 0x00) cannot be used in the EDI string. The processing of the string will be terminated when receiving NUL.

Example

When receiving the text string "Start alarm 3", terminated by Line Feed character, play alarm message 3 (8193) to group 85:

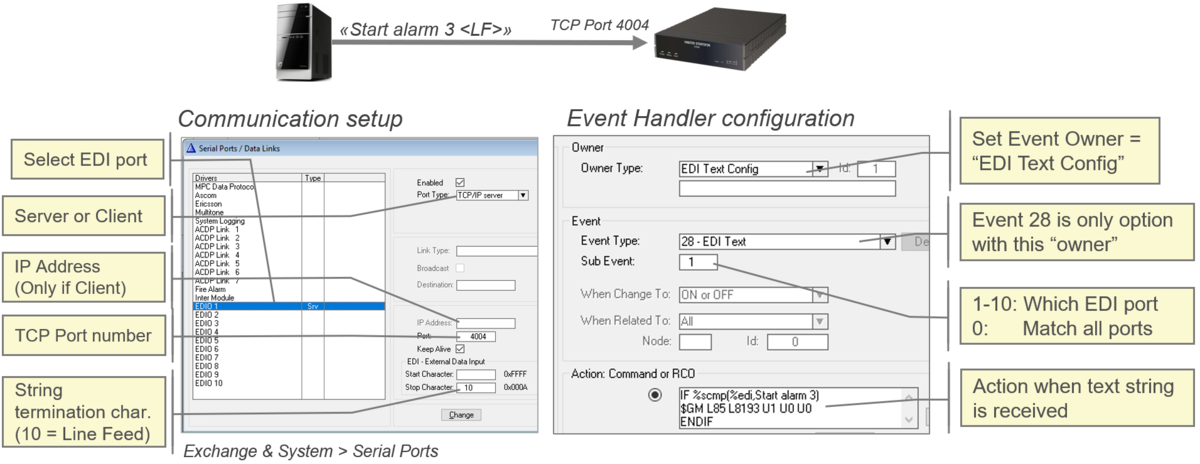

Trigger event by text string from external device
