TA-22B is a Plugbox & Cable for Headset.
Highlights
- 10m cable
- Compact, rugged plugbox with PTT for Industrial application
- IP Rating: IP66
- For use with AK5850HS Headset
- Designed for Turbine Industrial intercom TFIE series
- Available to TCIS series from Firmware 4.9.3.2
- Item number: 1008140225
Connecting TA-22B Plugbox to TFIE series Intercoms
- Open the TFIE Enclosure
- Plug the IDC connectors of the Plugbox cable into the J8 terminal block according to the pin configuration below.
|
As from october 2022 the brown and black connection is switched |

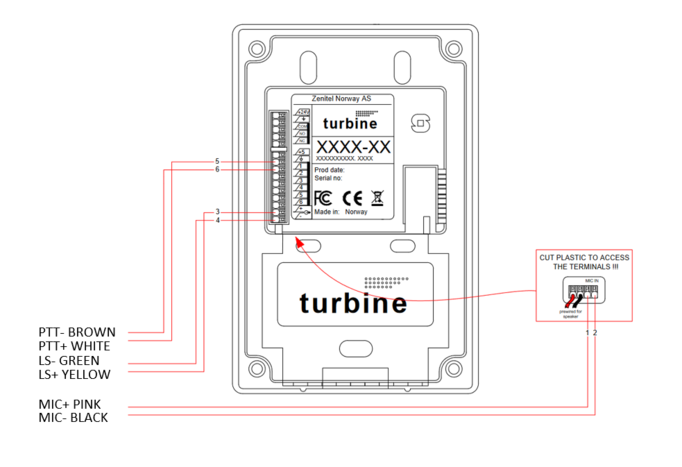

Connecting TA22-B Plugbox to TCIS series Intercoms
- Modify the plastic housing to access the Microphone terminals
- Connect the plugbox cable as shown below
- Set the Digital/Analog microphone switch to Analog IO Pin 1 from the Audio Settings of the device (Requires Advanced Configuration Mode)
- In this mode, the Analog Microphone will follow the PTT button, allowing use of the onboard microphone at other times.
