Speaker Dimensions & Mounting Instructions: Difference between revisions
From Zenitel Wiki
(Created page with " {|border="1" |width="250px"| |width="250px"|'''Dimensions (WxHxD)''' |width="150px"|'''Weight''' |- |ELSII-10H || 186 x 144 x 207 mm || 1.8 kg |- |ELSIR-10C || 199 x 19...") |
No edit summary |
||
| (5 intermediate revisions by the same user not shown) | |||
| Line 2: | Line 2: | ||
{|border="1" | {|border="1" | ||
|width="250px"| | |width="250px"| | ||
|width=" | |width="350px"|'''Dimensions (WxHxD)''' | ||
|width="150px"|'''Weight''' | |width="150px"|'''Weight''' | ||
|- | |||
|ZIPS-C || 199 x 146 mm / 7.83" x 5.74" || 1.2 kg / 2.646 lb | |||
|- | |||
|ZIPS-H || 152 x 253x 309 mm / 5.98" x 9.96" x 12.16" || 1.85 kg / 4.079 lb | |||
|- | |||
|ZIPS-WC || 245 x 160 x 187 mm / 9.64" x 6.3" x 7.36" || 2.1 kg / 4.63 lb | |||
|- | |||
|ZIPS-HHO || 170 x 315 x 350 mm / 6.69" x 12.4" x 13.78" || 2.49 kg / 5.49 lb | |||
|- | |||
|ELSII-10HM || 186 x 144 x 207 mm || 1.8 kg | |||
|- | |||
|ELSII-10LHM || 274 x 200 x 348 mm || 1.9 kg | |||
|- | |||
|ELSII-10PM || 201 x 176 x 160 mm || 2.35 kg | |||
|- | |||
|ELSIR-10CM || 199 x 146 x 145.5 mm || 1.4 kg | |||
|- | |||
|ELSII-10WM || 160 x 255 x 189 mm || 2.1 kg | |||
|- | |- | ||
|ELSII-10H || 186 x 144 x 207 mm || 1.8 kg | |ELSII-10H || 186 x 144 x 207 mm || 1.8 kg | ||
|- | |- | ||
|ELSIR-10C || 199 x | |ELSIR-10C || 199 x 146 x 145.5 mm || 1.4 kg | ||
|- | |- | ||
|} | |} | ||
=ELSIR-10C Dimensions= | ==ZIPS-H Dimensions== | ||
[[File:ZIPS-H Dimensions.jpg|800px]] | |||
<br> | |||
==ZIPS-HHO Dimensions== | |||
[[File:ZIPS-HHO Dimensions.jpg|800px]] | |||
<br> | |||
==ELSII-10HM Dimensions== | |||
[[File:ELSII-10HM Dimensions 1.png|800px]] | |||
<br> | |||
==ELSII-10LHM Dimensions== | |||
[[File:ELSII-10LHM Dimensions 1.png|800px]] | |||
<br> | |||

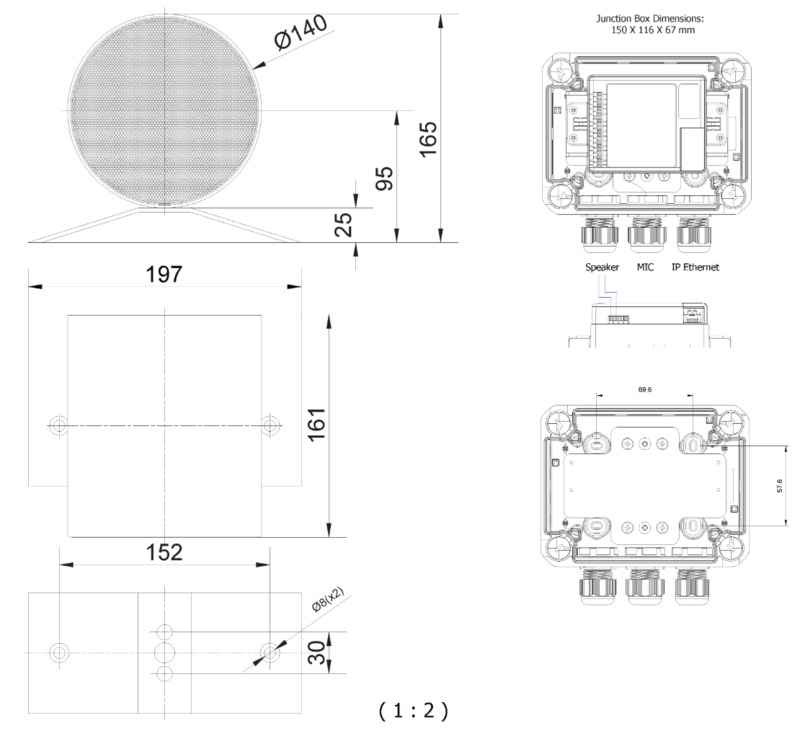

==ELSII-10PM Dimensions== | |||
[[File:ELSII-10PM Dimensions 1.png|800px]] | |||
<br> | |||
==ELSIR-10CM Dimensions== | |||
[[File:ELSIR-10CM Dimensions 1.png|800px]] | |||
<br> | |||
==ELSII-10WM Dimensions== | |||
[[File:ELSII-10WM Dimensions 1.png|800px]] | |||
==ELSIR-10C Dimensions== | |||
[[File:ELSIR-10C Dimensions 2.png|400px|''IP Speaker ELSIR-10C - Front view'']] | [[File:ELSIR-10C Dimensions 2.png|400px|''IP Speaker ELSIR-10C - Front view'']] | ||
[[File:ELSIR-10C Dimensions 1.png| | [[File:ELSIR-10C Dimensions 1.png|400px|''IP Speaker ELSIR-10C - Side view'']] | ||
<br style="clear:both;" /> | <br style="clear:both;" /> | ||
=ELSII-10H Dimensions= | ==ELSII-10H Dimensions== | ||

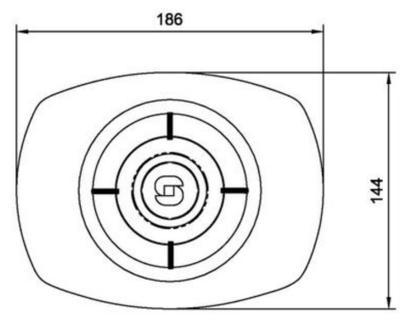

[[File:ELSII-10H Dimensions | [[File:ELSII-10H Dimensions 1.png|400px|''IP Speaker ELSII-10H - Front view'']] | ||
[[File:ELSII-10H Dimensions | [[File:ELSII-10H Dimensions 2.png|400px|''IP Speaker ELSII-10H - Side view'']] | ||
<br style="clear:both;" /> | <br style="clear:both;" /> | ||
[[Category: Turbine Dimensions & Mounting Instructions]] | [[Category: Turbine Dimensions & Mounting Instructions]] | ||
Latest revision as of 14:08, 8 January 2025
| Dimensions (WxHxD) | Weight | |
| ZIPS-C | 199 x 146 mm / 7.83" x 5.74" | 1.2 kg / 2.646 lb |
| ZIPS-H | 152 x 253x 309 mm / 5.98" x 9.96" x 12.16" | 1.85 kg / 4.079 lb |
| ZIPS-WC | 245 x 160 x 187 mm / 9.64" x 6.3" x 7.36" | 2.1 kg / 4.63 lb |
| ZIPS-HHO | 170 x 315 x 350 mm / 6.69" x 12.4" x 13.78" | 2.49 kg / 5.49 lb |
| ELSII-10HM | 186 x 144 x 207 mm | 1.8 kg |
| ELSII-10LHM | 274 x 200 x 348 mm | 1.9 kg |
| ELSII-10PM | 201 x 176 x 160 mm | 2.35 kg |
| ELSIR-10CM | 199 x 146 x 145.5 mm | 1.4 kg |
| ELSII-10WM | 160 x 255 x 189 mm | 2.1 kg |
| ELSII-10H | 186 x 144 x 207 mm | 1.8 kg |
| ELSIR-10C | 199 x 146 x 145.5 mm | 1.4 kg |
ZIPS-H Dimensions
ZIPS-HHO Dimensions
ELSII-10HM Dimensions
ELSII-10LHM Dimensions
ELSII-10PM Dimensions
ELSIR-10CM Dimensions
ELSII-10WM Dimensions
ELSIR-10C Dimensions
ELSII-10H Dimensions
