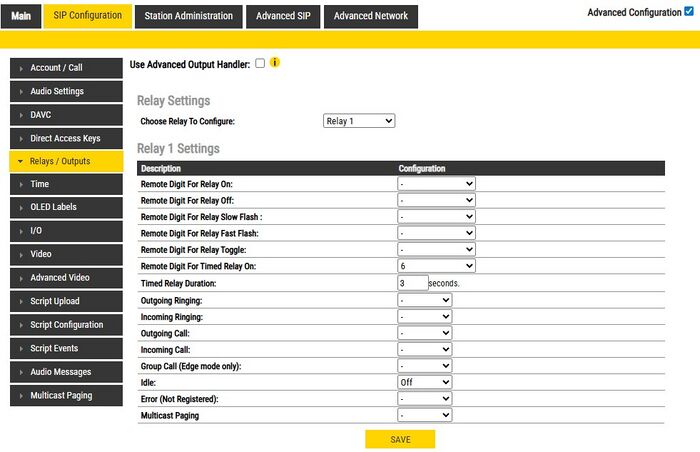

To configure relay operation, select SIP Configuration > Relay/Outputs.

Relay/Outputs

In Relay/Outputs you configure when a relay or output should change state. There are 4 different states: on, off, slow blinking and fast blinking. The "-" sign means that the behaviour does not change when the event occurs. The relay state can change either with a remote digit (DTMF signal) during a call, or if the station state changes.

As from Turbine firmware 4.11 you can choose between Basic Relay handling (in the image above), or Use Advanced Output Handler: The "Advanced Output Handler" makes it possible to better customize the relay/GPO handling to your preferences.

Choose Relay To Configure:

Select which relay or output to configure. The number of relays available depend on the device hardware.
- For IP-LCM, select Relay 1 to use the in-built relay on the TKIS-2 and select External Relay 1 - External Relay 8 to use the rest of the relays.
Outputs will become available in the list after being configured as "Outputs" in the I/O Settings page.

Remote DTMF digit during call:

Remote Digit For Relay On/Off/Slow flash/Fast flash: Choose which remote digit (DTMF signal) should change the relay to the on/off/Slow flash/Fast flash state
Remote Digit For Relay Toggle: Toggles the relay on/off every time the specified DTMF digit is received
Remote Digit For Relay Timed Relay On: Choose which remote digit (DTMF signal) should change the relay to the on state for a configureable number of seconds. This state is normally used for Door Opening feature.

Change of station state:

Outgoing Ringing / Incoming Ringing: Operate the relay while the station is ringing due to an incoming or outgoing call. The ringing state occurs from the call has started until the call has been accepted.
Outgoing Call / Incoming Call: Operate the relay while the station is in conversation. The call state occurs from the call is accepted untill the cal ends.
Group Call (Edge mode only): Operate the relay when the station receives a group call
Idle: Choose which state the relay should change to when nothing else is occuring on the station.
Error: Choose which state the relay should change to when the station is off-line (not registered on any SIP server).

Multicast Paging:

Multicast Paging: Operate the relay during playback of a multicast audio stream. Available from ver. 9.4.3.1.
