The IP-LCM module is an expansion to the TKIS-2, and adds high power relays and robust control inputs to the kit without extra wiring.
DIN-rail mounting allows for a flexible I/O device that reduces the amount of wiring for I/O inside racks and other systems.
 |

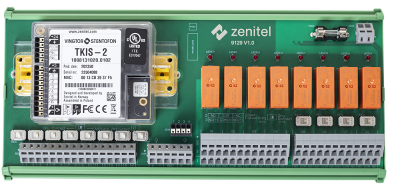

| IP Line Connection Module (1008095201) |
The large robust connectors allow for connections to external cabling without adding extra terminals and have been especially chosen to enable quick and easy connection of such systems.
- 8 relay outputs
- 8 control inputs
- Robust push-in connectors for cables up to 1.5 mm2 / 16 AWG
- Device powered via the TKIS-2 kit using PoE or local power
- All TKIS-2 features are available in addition, including:
- 1 relay
- 6 I/Os
- Analog 0dB Line Out
- Analog 0dB Line In (as from hardware version 1008095201.0200)
In general Zenitel offers a number of IP based kits, which can be used for a wide range of applications. See the kit comparison chart.
Contents
License Requirements
- An IP Station License is required for ICX-AlphaCom.
- An IP Station License is required in the AlphaCom XE.
Even if only the I/O part (no audio) of the IP-LCM is used a license is required.
IP-LCM hardware versions
There are two hardware versions:
- Version 1008095201.01xx: Original version
- Version 1008095201.0200: Added support for analog Line In
Hardware version 1008095201.0200 can be visually identified by:
- The TKIS-2 kit assembled with the text in same orientation as circuit board text
- Zenitel logo with "9129 V1.1" on the print board
- Line-in connector - J104
- Item number ending with .0200
Getting started
Configuration
The device can operate in different modes. Set the mode according to the server the station should register to.
|
To use this device with Zenitel Connect Pro it must be factory defaulted. The device configuration is done from the Zenitel Connect Pro server. |
Device specific configuration for the IP-LCM:
Restore Factory Defaults and Software Upgrade
- Restore Factory Defaults
- Upgrade via the station web interface
- Upgrade using the IMT tool
- Software Release Notes
Connectors, Indicators and Dimensions
Software Requirements
The IP-LCM is fully supported from device version 4.11.x.x
When used in AlphaCom mode, this device is fully supported as from AlphaCom version 11.2.3.7
