Device Configuration (Zenitel Connect)

The Devices and Connections > Configuration page is used to add stations and devices to the Zenitel Connect system, configure their properties, and manage device settings.

The page provides an overview of all devices in the system, including their operational status. The displayed columns can be customized by showing or hiding additional columns using the button in the upper-right corner of the page.

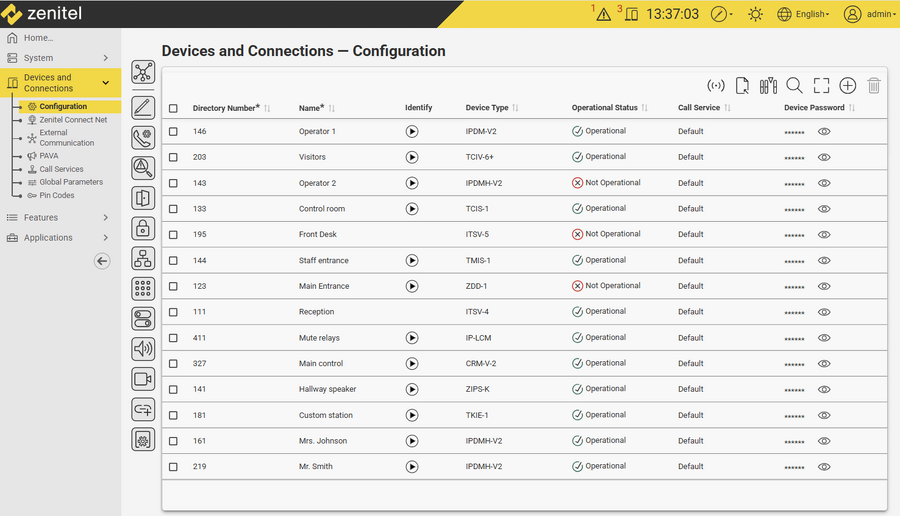

The Device Configuration page

Configuration of a device

Once a device has been added, you can configure its properties by selecting it and using the icons displayed on the left.

You can also select multiple devices. If the selected devices are of different types, only the parameters that are common to all selected devices will be displayed.

Configuration icons:

Icon	Description	Configuration of…
	Subnets	Subnets used by the devices in the system
	Edit	Directory number, Name and Call Service
	Call Settings	Answer Mode, Call Priority, Press and Hold Time, Speech Direction Control, Call Forwarding, Ring Tones, Additional Ringers, Neighbour Broadcast Mute
	Fault Monitoring	Fault Reporting to ITSV-x
	Door Opening	Door Opening feature
	Passwords	Credentials for ONVIF-, RTSP- and HTTP MJPEG user
	Network	Network settings for a device
	Buttons	Call and Function Buttons / Call List (Address Book)
	Inputs and Outputs	Inputs, Outputs (GPIOs) and Relay
	Audio	Audio Settings of the device (e.g. Volume and DRC)
	Video	Video Settings for device with camera
	Integration	ONVIF Configuration and RTSP Settings
	Display Settings	OLED Display and ZDD Touchscreen settings
