EMMAX-1H: Difference between revisions

Revision as of 11:11, 18 October 2016

Handheld microphone for EX applications
PTT key
Noise cancelling microphone
High quality digital background noise reduction
IP66 Rating
Designed for Exigo EX access panels & Turbine EX explosion proof intercom stations

Connect the wire ferrules on the Compact Microphone cable to the terminal block according to the pin configuration below.

	Dimensions (WxHxD)	Weight
EMMAX-1H	44 x 68 x 21.5 mm	0.22 kg

@@ Line 1: / Line 1: @@
-[[File:EMMAI-2H.PNG|thumb|500px]]
+[[File:EMMAI-2H.PNG|thumb|200px]]
-==Highlights==
+===Highlights===
 * Handheld microphone for EX applications
 * PTT key
@@ Line 9: / Line 9: @@
 * Designed for Exigo EX access panels & Turbine EX explosion proof intercom stations
-==Additional Documentation==
+===Connecting EMMAX-1H to TFIX===

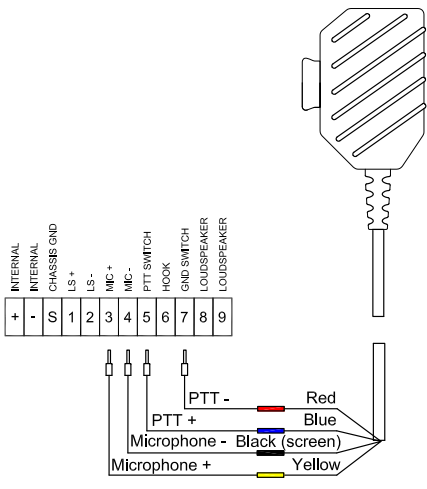

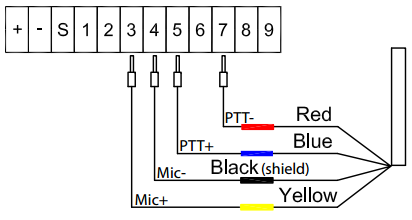

+Connect the wire ferrules on the Compact Microphone cable to the terminal block according to the pin configuration below.
+[[File:EMMAX-1H Connections 1.PNG|thumb|left|500px]]
+<br style="clear:both;" />
+[[File:EMMAX-1H Connections 2.PNG]]
+<br style="clear:both;" />
+===Dimensions===
+{|border="1"
+|width="250px"|&nbsp;
+|width="250px"|'''Dimensions (WxHxD)'''
+|width="150px"|'''Weight'''
+|-
+|EMMAX-1H || 44 x 68 x 21.5 mm || 0.22 kg
+|}
+<gallery widths=300px heights=400px perrow=3>
+File:EMMAI-2H Dimensions 1.PNG
+File:EMMAI-2H Dimensions 2.PNG
+</gallery>
+[[File:EMMAI-2H Dimensions 3.PNG]]
+<br style="clear:both;" />
+===Additional Documentation===
 For more documentation please see http://www.zenitel.com/product/product/emmax-1h
-[[File:EMMAI-2H 1.PNG|left|350px|thumb]]
+[[File:EMMAI-2H 1.PNG|left|150px|thumb]]
-[[File:EMMAI-2H 2.PNG|left|350px|thumb]]
+[[File:EMMAI-2H 2.PNG|left|150px|thumb]]
 [[Category: Turbine Backboxes and accessories]]
