EMMAX-1H
From Zenitel Wiki
Handheld Industrial EX Microphone For Exigo/Turbine
Highlights
- Handheld microphone for EX applications
- PTT key
- IP66 rating
- Noise cancelling microphone
- High quality digital background noise reduction
- Designed for Exigo EX access panels & Turbine EX explosion proof intercom stations

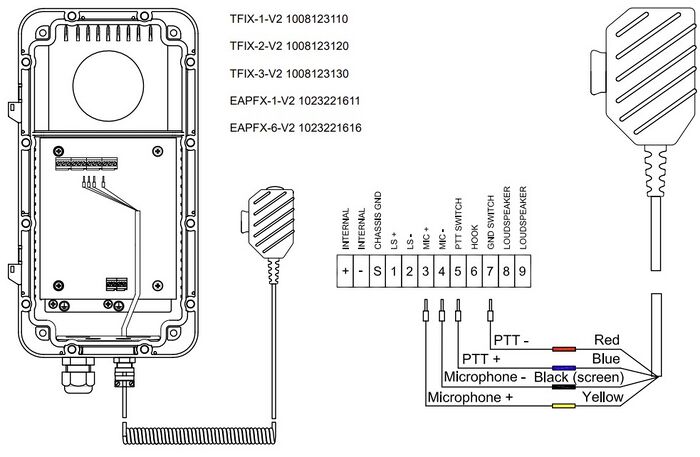

Connection to the TFIX-V2 station
- Connect the wire ferrules on the Compact Microphone cable to the connectors according to the pin configuration below.

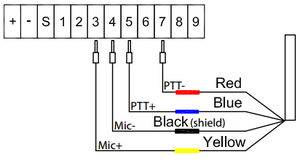

Connection to the TFIX-V1 station (obsolete)
- Open the TFIX Enclosure
- Connect the wire ferrules on the Compact Microphone cable to the terminal block according to the pin configuration below.
Configuration
- Log in to the station web interface
- Navigate to Audio Settings.
- Set "Accessories" to "Handheld Microphone".
- Reboot the station.

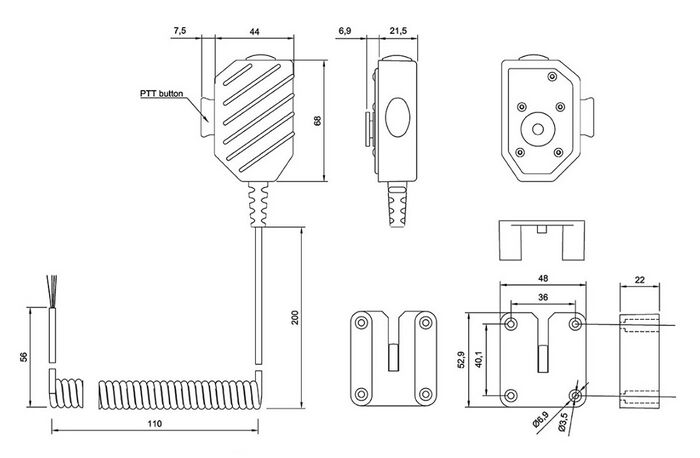

Dimensions
