Logging into an Zenitel IP Device

From Zenitel Wiki


Access the web interface of a Zenitel IP device with a standard web browser:

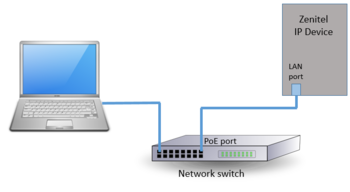

StartUp Z-device.PNG
Connect the laptop and the IP device to a network switch, and open a web browser
  1. Open a web browser
  2. In the browser’s address bar, type the IP address of the device
- The login page will be displayed.

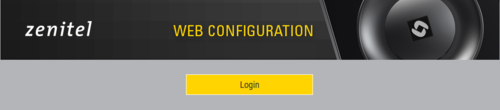

The login page

To log into the device:

  1. Click on one of the login options
  2. Enter the User Name. Default is admin
  3. Enter the Password. Default is alphaadmin

The Station Information page will now be displayed, showing the IP configuration and status.


Default IP addresses


How to set a static IP Address on your Windows 10 computer

In order to access the web interface of the station, your computer must be in the same subnet range as the device.

  1. Click Start, and type Control in the search field, then select Control Panel.
  2. Click on Network and Internet.
  3. Click on Network and Sharing Center.
  4. On the left pane, click the Change adapter settings link.
  5. Right-click the network adapter and select Properties.
  6. Select the Internet Protocol Version 4 (TCP/IPv4) option.
  7. Click the Properties button.
  8. Select the Use the following IP address option.
  9. Set the IP address (e.g., 169.254.1.90).
  10. Set the Subnet mask. (e.g., 255.255.0.0).
  11. Set the Default gateway. This address is typically your router’s IP address (e.g., 169.254.1.1).
  12. Click OK.
  13. Click Close again to close the network adapter properties.
PC StaticIP.PNG
Setting a Static IP Address on the laptop

Once you’ve completed the steps, you can open your web browser and try logging into the device.
