Revision as of 14:11, 17 March 2011
Number & Name

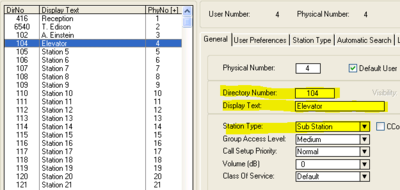

- In AlphaPro, Users & Stations window, select physical port 4 and configure as follows:
Call Button
- In AlphaPro, Users & Stations, select physical port 4. Then press the button DAK, and configure as follows:
Call capacity
Each ASLT card has one speech channel. To increase the call apacity, insert more ASLT cards.
