1-2b. Analogue Stations – Substation (solution)

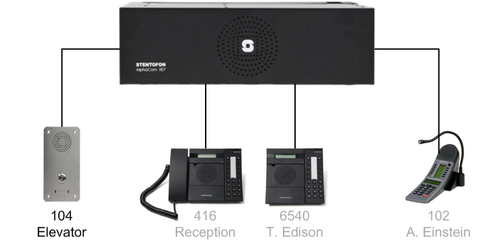

System configuration

Number & Name

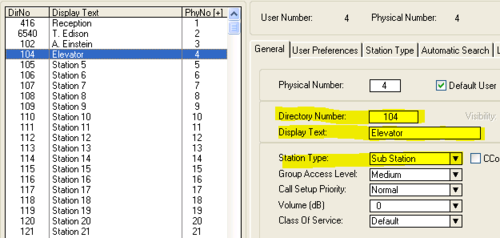

• In AlphaPro, Users & Stations window, select physical port 4 and configure as follows:

AlphaPro: Users & Stations window

Call Button

• In AlphaPro, Users & Stations, select physical port 4. Then press the button DAK, and configure as follows:

AlphaPro: Users & Stations -> DAK window

Call capacity

Each ASLT card has one speech channel. To increase the call capacity when using analogue stations, insert more ASLT cards.

---
