Server Information (Zenitel Connect Pro)
From Zenitel Wiki
The tile Server Information in the System section provides information and status of the system and the devices. There are three main selections:
- Zenitel Connect
- Devices
- Calls
 |
| System Information page |
Zenitel Connect information
General Info
Shows the software version, as well as system information fetched from the license file.
Container Status
Health status of the different containers which make up the complete Zenitel Connect Pro software package.
Open Source licenses
Provides a list of all open source licenses of open source software which is used by Zenitel Connect Pro.
Devices information
Provides an overview of the status of devices. In addition there is an icon on the top banner that shows the number of devices with issues. Clicking on this icon will take you to the device overview page.
 |
| Status and quick link to the Device Status page. Here: 5 devices with issues. |
In the Device Status page one can filter on different statuses: Issues, Unpaired, Unconfigured, Offline, Unregistered, Tone Test, All.
 |

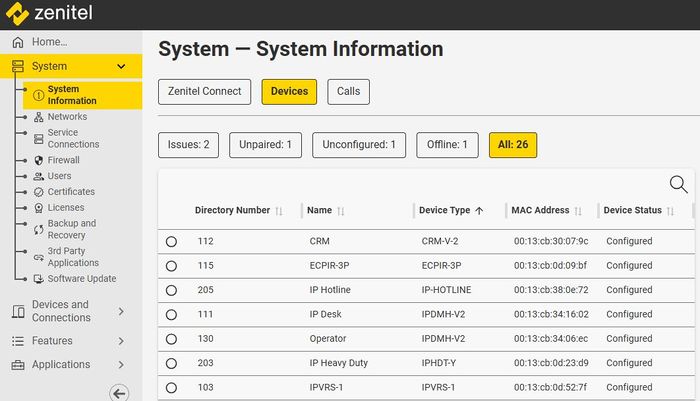

| Device status |
By clicking on the radio button to the left of a device, more details will be displayed on that particular device:
 |
| Detailed device status for station number 111 |
- Identify: Will play a tone in the loudspeaker for a few seconds, making it possible to identify the location of the device.
- Tone Test: Verify that the loudspeaker and microphone is fully functional by playing a test tone in the loudspeaker which is picked up by the microphone.
- Button Test: Verify that the call button is fully operational. Applicable to the Vandal Resistant intercom - VR3G-1P only.
Calls information
Shows the number of active calls and broadcasts in the system.
 |
| Call status: Currently two active calls |
