1-2a. Analogue Stations – Dual Display (practice)

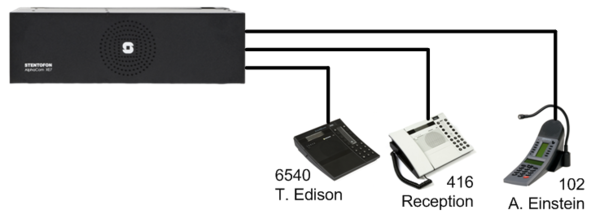

System configuration

Exercise

• Connect a Dual Display station to physical port number 3
• Configure:
  • Station Type = Dual Display
  • Directory number = 102
  • Display text = A. Einstein

• Check Navigation Key configuration
• Program DAK 1 and DAK 2 to call the two master stations

---
