1-2a. Analogue Stations – Dual Display (solution)

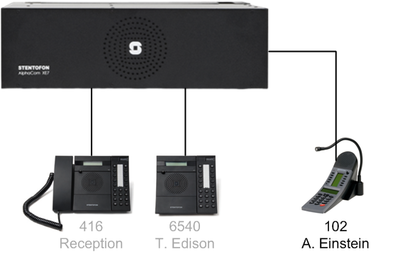

System configuration

Configuration

• In AlphaPro go to Users & Stations, and select physical number 3; 103 Station 3
• Use the section on the right and change the configuration as follows:

AlphaPro: Users & Stations

• Send the changes to the AlphaCom:

• Check that the display on the dual display station shows: 102 A. Einstein

DAK keys

• In AlphaPro go to Users & Stations and select physical number 3
• Click the DAK button in the lower left corner
• Select the DAK 1-10 tab, and insert the following:

AlphaPro: Users & Stations -> DAK

• Press DAK1 and observe that 416 Reception is called
• Press DAK2 and observe that 6540 T. Edison is called

Additional information

When selecting Station Type = DualDisplay, the Navigation keys below the display are automatically configured. You can view the navigation key programming by selecting Users & Stations -> DAK -> Navig. Keys tab

• Check that key 1-4 are:
  • I60 (Info menu)
  • I9543 (Page UP)
  • I9544 (Page DOWN)
  • I9542 (Menu)

Navigation keys

AlphaPro: Users & Stations -> DAK -> Navig keys

---

Related articles

• 1-2a. Analogue Stations – Dual Display (practice)
