1-2a. Analogue Stations – Dual Display (solution)

From Zenitel Wiki

Revision as of 15:40, 16 March 2011 by Asle (talk)

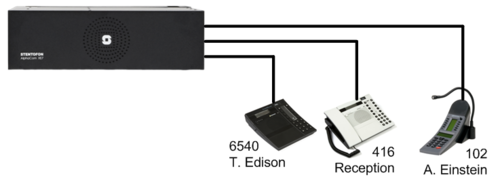

System configuration


Configuration

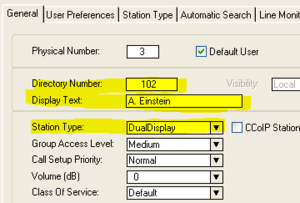

AlphaPro: Users & Stations
  • In AlphaPro go to Users & Stations in the main menu
  • Select physical number 3; 103 Station 3
  • Use the section on the right and change the Directory Number to 102
  • Change the Display Text to A. Einstein
  • Change Station Type to DualDisplay, click Ok
  • Send the changes to the AlphaCom
  • Check that the display on the dual display station shows: 102 A. Einstein


DAK keys

AlphaPro: Users & Stations
  • In AlphaPro go to Users & Stations in the main menu
  • Select physical number 3
  • Click the DAK button in the lower left corner
  • Select the DAK 1-10 tab
    • Insert field 1: I416
    • Insert in field 2: I6540
  • Press DAK1 and observe that 416 Reception is called
  • Press DAK2 and observe that 6540 T. Edison is called


Additional information

Navi and DAK Keys

  • In AlphaPro go to Users & Stations in the main menu
  • Click the DAK button in the lower left corner
  • Select the Navig. Keys tab
  • Check that key 1-4 are:
  • I60
  • I9543
  • I9544
  • I9542

Select the DAK 1-10 tab

  • Insert in field 1: I416

'Insert in field 2: I6540
