  Dimensions (WxHxD) Weight
ELSII-10H 186 x 144 x 207 mm 1.8 kg
ELSIR-10C 199 x 199 x 145.5 mm 1.4 kg

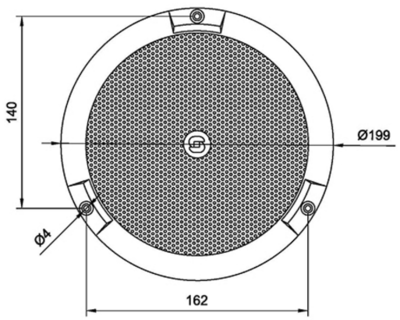

ELSIR-10C Dimensions

IP Speaker ELSIR-10C - Front view IP Speaker ELSIR-10C - Side view

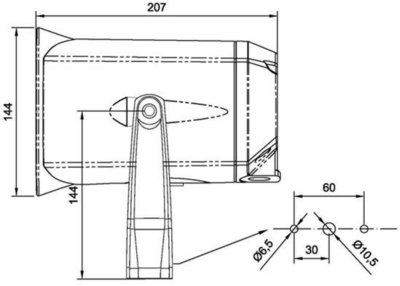

ELSII-10H Dimensions

IP Speaker ELSII-10H - Front view IP Speaker ELSII-10H - Side view
