Assembly instruction on Tamper Switch for IP Vandal Resistant Substation TKIE

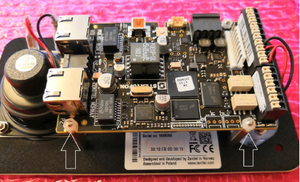

Step 1: Remove the two nylon nuts shown below

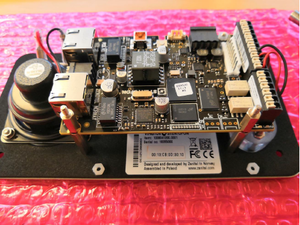

Step 2: Attach the supplied spacers

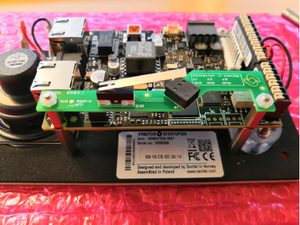

Step 3: Mount the tamper switch board

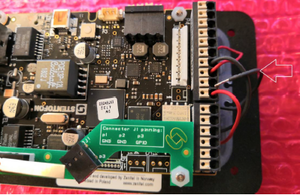

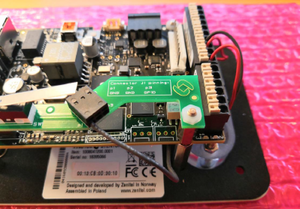

Step 4: Move the button GND wire from the the TKIE board to the tamper switch board

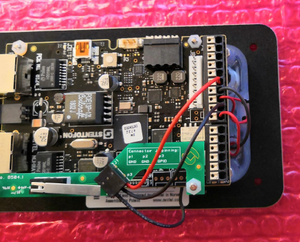

Step 5: Use the supplied wires to connect GND and Input 3 as shown below
