The IP Vandal Resistant Substation with TKIE has the possibility to be fitted with a tamper switch. Making it possible to raise an alarm if the station is dismounted from the backbox.

Tamper Switch
(1008091010)

Configuration

In AlphaPro, create this event for the Tamper Switch:

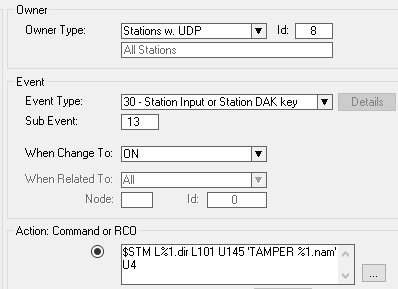

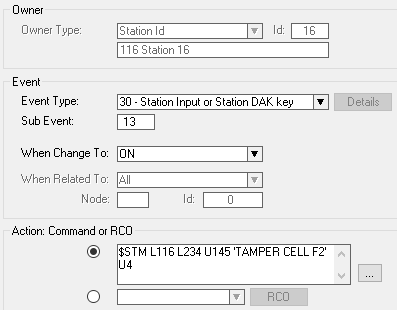

Event handler configuration


The IP Substation must have I/O 3 defined as an input, which is the default setting.

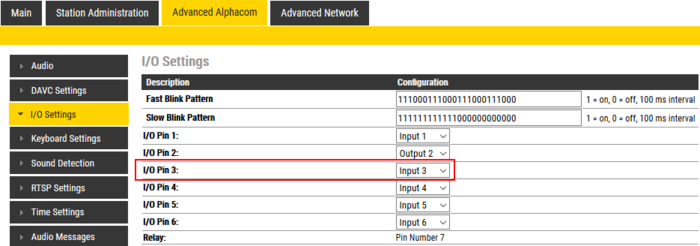

Advanced AlphaCom -> I/O Settings


Mounting

Mounting instruction on Tamper Switch for IP Vandal Resistant Substation TKIE

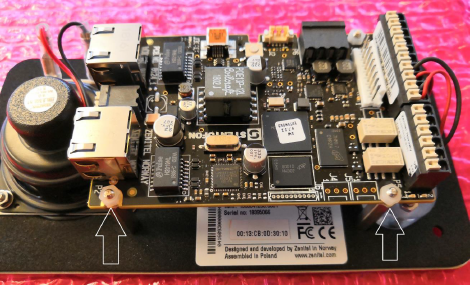

Step 1: Remove the two nylon nuts shown below



Step 2: Attach the supplied spacers

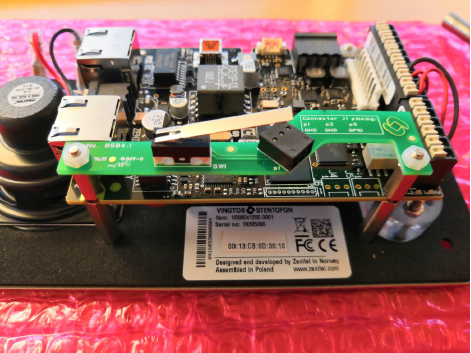

Step 3: Mount the tamper switch board

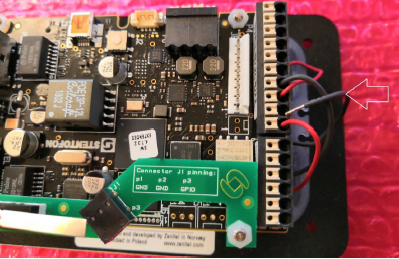

Step 4: Move the button GND wire from the the TKIE board to the tamper switch board

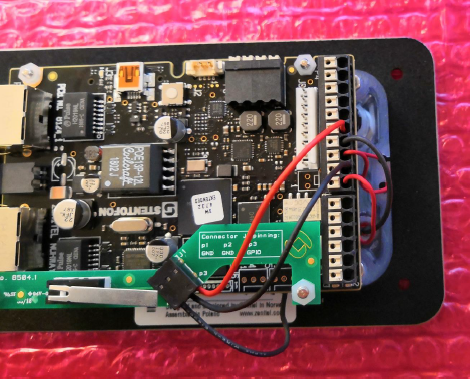

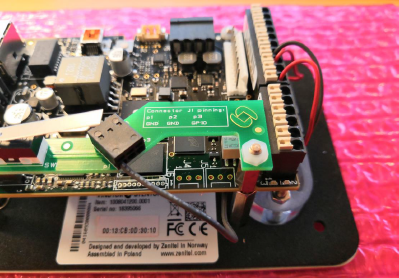

Step 5: Use the supplied wires to connect GND and Input 3 as shown below
